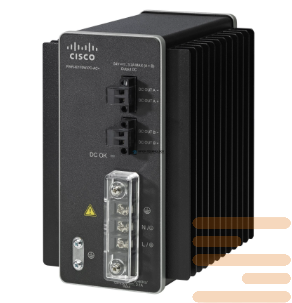

Power supply Cisco PWR-IE170W-PC-DC=
SKU
PWR-IE170W-PC-DC=
€1,718.10
EAN:
20147
Condition:
new
Stock:
available on order
Lead time:
25-35 days
GPL price:
2246 $
170W AC to DC or High DC to DC Power Supply
Category: Networking Accessories
Cisco Systems offers a wide range of related products and accessories that complete the equipment. The client has the ability to separately >ath power supply or fan cooling module to the chassis Cisco. You can also pick up Mounting in a rack for the switch Catalyst, or add prompt and flash memory into the router ISR4000 series by bought the desired bar of a certain container.
For each series or line of equipment Cisco There are many different kinds components and accessories.
Schedule of power supply Cisco PWR-IE170W-PC-DC=:
| Parameter | Specification |
|---|---|
| Product Name | Cisco PWR-IE170W-PC-DC= |
| Product Type | Industrial DC Power Supply |
| Form Factor | DIN Rail Mountable |
| Input Voltage Range | 24–48 VDC nominal(operational range: 18–60 VDC) |
| Input Current (max) | 8.6 A @ 24 VDC |
| Output Voltage | 54 VDC nominal |
| Output Current | 3.15 A (maximum load) |
| Maximum Output Power | 170 W |
| Efficiency | ≥ 88% (typical) |
| Cooling Method | Natural convection (fanless) |
| Dimensions (HxWxD) | 124 mm x 60 mm x 120 mm(4.88 x 2.36 x 4.72 in.) |
| Weight | ~0.8 kg (1.76 lb) |
| Operating Temperature | -40°C to +70°C (full load)-40°C to +85°C (with derating) |
| Storage Temperature | -40°C to +85°C |
| Humidity (non-condensing) | 5% to 95% |
| Input Protection | Internal fuse, reverse polarity, inrush current limiter |
| Output Protection | Overvoltage, overload, and short-circuit protection |
| MTBF | > 500,000 hours (Telcordia SR-332, Ground Benign) |
| Certifications | UL 508, cULus, CE, CB Scheme, RCM, EAC, RoHS |
| EMC Compliance | EN 61000-6-2, EN 61000-6-4, CISPR 32 Class B |
| Environmental Compliance | RoHS 6/6 compliant |
| Mounting Method | 35 mm DIN Rail |
| Input Connector | 2-pin pluggable terminal block (DC input) |
| Output Connector | 2-pin pluggable terminal block (DC output) |
| Use Case | Ideal for powering Cisco Industrial Ethernet switches with PoE/PoE+ capabilities |
| Part Number | PWR-IE170W-PC-DC= |
| condition | new |
|---|
