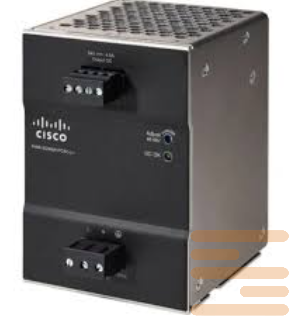

Power supply Cisco PWR-IE240W-PCAC-L=
SKU
PWR-IE240W-PCAC-L=
€1,493.10
EAN:
20148
Condition:
new
Stock:
available on order
Lead time:
25-35 days
GPL price:
1951 $
240W AC to DC Power Supply
Category: Networking Accessories
Cisco Systems offers a wide range of related products and accessories that complete the equipment. The client has the ability to separately >ath power supply or fan cooling module to the chassis Cisco. You can also pick up Mounting in a rack for the switch Catalyst, or add prompt and flash memory into the router ISR4000 series by bought the desired bar of a certain container.
For each series or line of equipment Cisco There are many different kinds components and accessories.
Schedule of power supply Cisco PWR-IE240W-PCAC-L=:
| Parameter | Specification |
|---|---|
| Product Name | Cisco PWR-IE240W-PCAC-L= |
| Product Type | Industrial AC Power Supply |
| Form Factor | DIN Rail Mountable |
| Input Voltage Range | 100–240 VAC (nominal) 90–264 VAC (operational) |
| Input Frequency | 47–63 Hz |
| Input Current (max) | 3.0 A @ 115 VAC 1.5 A @ 230 VAC |
| Output Voltage | 54 VDC nominal |
| Output Current | 4.5 A |
| Maximum Output Power | 240 W |
| Efficiency | > 90% (typical) |
| Power Factor | > 0.95 |
| Cooling Method | Natural convection (fanless) |
| Dimensions (HxWxD) | 124 mm x 60 mm x 120 mm (4.88 x 2.36 x 4.72 in.) |
| Weight | ~1.0 kg (2.2 lb) |
| Operating Temperature | -40°C to +70°C (full load) -40°C to +85°C (with derating) |
| Storage Temperature | -40°C to +85°C |
| Humidity (non-condensing) | 5% to 95% |
| Input Protection | Internal fuse, surge protection, inrush current limiter |
| Output Protection | Short-circuit, overload, overvoltage protection |
| MTBF | > 500,000 hours (per Telcordia SR-332, Ground Benign Conditions) |
| Certifications | UL 508, cULus, CE, CB Scheme, RCM, EAC, RoHS |
| EMC Compliance | EN 61000-6-2, EN 61000-6-4, CISPR 32 Class B |
| Environmental Compliance | RoHS 6/6 compliant |
| Mounting Method | 35 mm DIN Rail |
| Input Connector | Pluggable terminal block (AC input) |
| Output Connector | Pluggable terminal block (DC output, 54V) |
| Use Case | Designed for Cisco PoE/PoE+ industrial switches, including IE-3100 and IE-4000 |
| Part Number | PWR-IE240W-PCAC-L= |
| condition | new |
|---|
