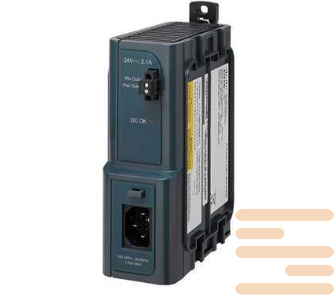

Power supply Cisco PWR-IE50W-AC-L=
SKU
PWR-IE50W-AC-L=
€357.30
EAN:
20142
Condition:
new
Stock:
available on order
Lead time:
25-35 days
GPL price:
467 $
50W AC to DC Power Supply
Category: Networking Accessories
Cisco Systems offers a wide range of related products and accessories that complete the equipment. The client has the ability to separately >ath power supply or fan cooling module to the chassis Cisco. You can also pick up Mounting in a rack for the switch Catalyst, or add prompt and flash memory into the router ISR4000 series by bought the desired bar of a certain container.
For each series or line of equipment Cisco There are many different kinds components and accessories.
Schedule of power supply Cisco PWR-IE50W-AC-L=:
| Parameter | Specification |
|---|---|
| Product Name | Cisco PWR-IE50W-AC-L= |
| Product Type | Compact Industrial Power Supply |
| Form Factor | DIN Rail Mountable |
| Input Voltage Range | 100–240 VAC |
| Input Frequency | 50–60 Hz |
| Output Voltage | 24 VDC nominal (adjustable from 24 to 28 VDC) |
| Maximum Output Power | 50 W |
| Output Current | 2.1 A at 24 VDC |
| Efficiency | Typically >88% |
| Cooling Method | Natural Convection (fanless) |
| Dimensions (HxWxD) | 90 mm x 45 mm x 100 mm (3.54 x 1.77 x 3.94 in.) |
| Weight | ~0.30 kg (0.66 lb) |
| Operating Temperature | -40°C to +70°C (full load)-40°C to +85°C (with derating) |
| Storage Temperature | -40°C to +85°C |
| Humidity (non-condensing) | 5% to 95% |
| Input Protection | Internal fuse, inrush current limiter |
| Output Protection | Short circuit, overload, and overvoltage protection |
| MTBF | > 500,000 hours (per Telcordia SR-332, Ground Benign Conditions) |
| Certifications | UL 508, cULus, CE, CB Scheme, RCM, EAC, RoHS |
| EMC Compliance | EN 61000-6-2, EN 61000-6-4, CISPR 32 Class B |
| Environmental Compliance | RoHS 6/6 compliant |
| Mounting Method | 35 mm DIN Rail |
| Compatibility | Designed for Cisco Industrial Ethernet Switches (IE1000, IE2000, IE3000, IE3100, etc.) |
| Part Number | PWR-IE50W-AC-L= |
| Notes | The "-L" variant is a more compact version compared to standard PWR-IE50W-AC= |
| condition | new |
|---|
