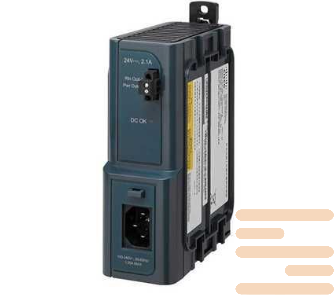

Power supply Cisco PWR-IE50W-AC=
SKU
PWR-IE50W-AC=
€424.80
EAN:
20141
Condition:
new
Stock:
available on order
Lead time:
25-35 days
GPL price:
555 $
50W AC to DC or High DC to DC Power Supply
Category: Networking Accessories
Cisco Systems offers a wide range of related products and accessories that complete the equipment. The client has the ability to separately >ath power supply or fan cooling module to the chassis Cisco. You can also pick up Mounting in a rack for the switch Catalyst, or add prompt and flash memory into the router ISR4000 series by bought the desired bar of a certain container.
For each series or line of equipment Cisco There are many different kinds components and accessories.
Schedule of power supply Cisco PWR-IE50W-AC=:
| Parameter | Specification |
|---|---|
| Product Name | Cisco PWR-IE50W-AC= |
| Product Type | External Power Supply for Cisco Industrial Ethernet Switches |
| Form Factor | DIN Rail Mountable |
| Input Voltage Range | 100–240 VAC |
| Input Frequency | 50–60 Hz |
| Output Voltage | 24 VDC nominal (adjustable 24–28 VDC) |
| Maximum Output Power | 50 W |
| Output Current | 2.1 A at 24 VDC |
| Efficiency | > 88% (typical) |
| Input Protection | Internal Fuse, Inrush Current Limiting |
| Output Protection | Overvoltage Protection (OVP), Short Circuit Protection (SCP), Overload Protection |
| Cooling Method | Natural Convection (fanless) |
| Operating Temperature | -40°C to +70°C (full load)-40°C to +85°C (with derating) |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% (non-condensing) |
| MTBF | > 500,000 hours (Telcordia SR-332) |
| Certifications | CE, UL 508, cULus, CSA, CB, RCM, EAC |
| EMC Standards | EN 61000-6-2, EN 61000-6-4, CISPR 32 Class B |
| Dimensions (HxWxD) | 97 mm x 45 mm x 100 mm (3.82 x 1.77 x 3.94 in.) |
| Weight | ~0.30 kg (0.66 lb) |
| Compatibility | Cisco IE-1000, IE-2000, IE-3000, IE-3100, IE-3300, IE-4000 Series (select models) |
| Mounting Method | 35 mm DIN Rail |
| Part Number | PWR-IE50W-AC= |
| condition | new |
|---|
