Series routers AR100/AR120/AR160/AR200 with a fixed access interface provide routing and switching functions for branch offices and small businesses. Convenient installation and setup, silent functioning due to the absence of fan suitable for office use.
Available with 4 or 8 ports Fast Ethernet (FE) and 2 upstream ports for load balancing and link protection; total capacity from 100 to 150 Mbit/s. Support for voice and data transmission, including wireless access.

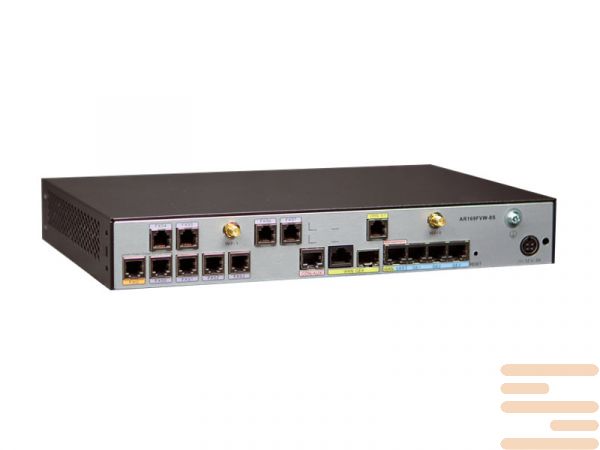

Router Features Huawei AR169FVW-8S :
|
AR169FVW-8S
|
|
|
WAN speed with services* (IMIX)
|
150 Mbps
|
|
Number of recommended users
|
50
|
|
Fixed WAN ports
|
1 x VDSL2 with bonding (compatible with ADSL2+ Annex A/M), 1x GE Combo
|
|
Fixed Ethernet switching ports
|
4 x GE(can be configured as WAN interfaces)
|
|
Fixed voice ports
|
8 x FXS, 1 x FXO
|
|
Integrated LTE
|
-
|
|
Wi-Fi
|
802.11b/g/n
|
|
USB 2.0 ports
|
1
|
|
console ports
|
1
|
|
Memory size
|
512 MB
|
|
Flash memory
|
512 MB
|
|
Maximum power
|
24 W
|
|
Power supply (AC)
|
100 V to 240 V
|
|
Frequency
|
50/60 Hz
|
|
Dimensions (H x W x D)
|
44.5 mm x 300 mm x 220 mm (1.75 in. x 11.8 in. x 8.66 in.)
|
|
Operating temperature
|
0C to 45C
|
|
Relative humidity
|
5% to 95% (noncondensing)
|
