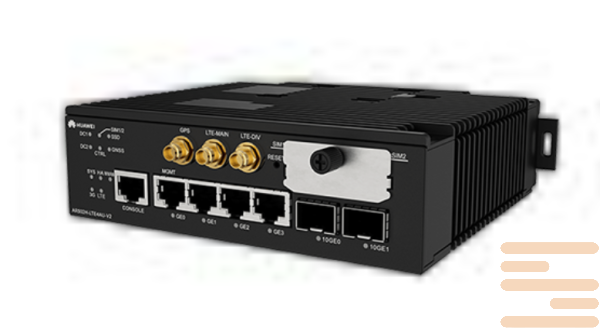

Router Huawei AR502H-LTE4EA-V2
SKU
AR502H-LTE4EA-V2
EAN:
21479
Condition:
new
Stock:
available on order
Lead time:
25-35 days
Huawei AR502H-LTE4EA-V2 4 x GE electrical ports (10/100/1000 Mbit/s auto-sensing)
Category: Huawei Router
Routers Huawei NetEngine used in individual, private corporate networks of different sizes. The height of the apparatus varies from 2 U to 4 U, And the depth of the units at the same time is everything 220 mm, This feature of switches allows you to significantly save space in the hardware room..
Routers function Huawei NetEngine in a very wide range of temperatures that varies within - 40 up to + 60 degrees, which allows operation in complex, harsh environments.
Technical features:
- Unique chips of their own development Huawei Provide increased information transmission speeds
- «Hard» IP The channel improves the quality of services of a separate IP line
- Unique technologies IP FPM and hardware function BFD allow you to quickly and most importantly determine the fault and its character
- Architecture SDN, Performs a balanced distribution of traffic, increases the efficiency of using the bandwidth
| Feature | Specification |
|---|---|
| Model | Huawei AR502H-LTE4EA-V2 |
| Processor | Quad-core ARM Cortex-A53, 1.6 GHz |
| Memory | 4 GB DDR4 RAM |
| Storage | 2 GB SLC NAND Flash |
| Hard Disk | Supported (M.2 2242 NVMe SSD, up to 256 GB; for edge computing scenarios) |
| Ethernet Ports | 4 x GE electrical ports (10/100/1000 Mbit/s auto-sensing) |
| SFP Ports | 2 x 10GE SFP+ |
| Serial Ports | 2 x RS485 (isolated; software-selectable RS232/RS485) |
| Alarm Ports | 1 x DI (digital input), 1 x DO (digital output) |
| SIM Slots | 2 x Micro-SIM |
| GPS Support | GPS/GLONASS/BDS |
| Power Supply | Dual DC input: 9.6–60 V (industrial terminal) |
| Operating Temperature | –40°C to +70°C |
| Dimensions (W x H x D) | 150 mm x 44 mm x 133 mm |
| Weight | 1.05 kg (base configuration) |
| Cooling | Fan-free design |
| Compliance | IEC 61850-3, IEEE 1613 |
| Security Features | Container disk encryption, app signature verification, dual-partition backup |
| IoT Protocols | MQTT, CoAP |
| Software Environment | Standard Debian-based OS, SDKs for secondary development |
| Management | Cloud-based management via Agile Controller-IoT, visualized configuration, GUI |
| condition | new |
|---|
