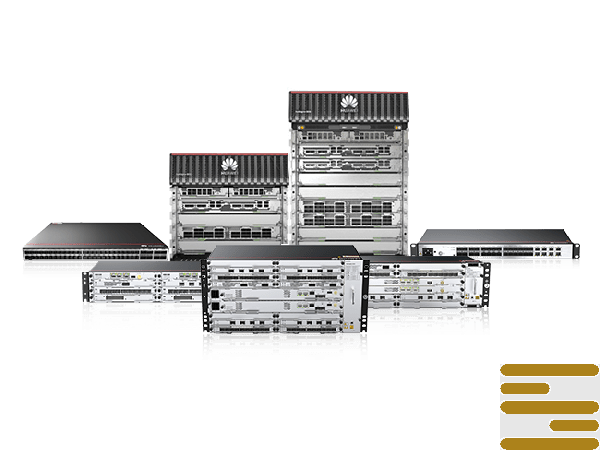

Router Huawei NetEngine 8000E F1A
SKU
NetEngine 8000E F1A
EAN:
21460
Condition:
new
Stock:
available on order
Lead time:
25-35 days
Huawei NetEngine 8000E F1A Fixed-configuration (does not support flexible line cards)
Category: Huawei Router
Routers Huawei NetEngine used in individual, private corporate networks of different sizes. The height of the apparatus varies from 2 U to 4 U, And the depth of the units at the same time is everything 220 mm, This feature of switches allows you to significantly save space in the hardware room..
Routers function Huawei NetEngine in a very wide range of temperatures that varies within - 40 up to + 60 degrees, which allows operation in complex, harsh environments.
Technical features:
- Unique chips of their own development Huawei Provide increased information transmission speeds
- «Hard» IP The channel improves the quality of services of a separate IP line
- Unique technologies IP FPM and hardware function BFD allow you to quickly and most importantly determine the fault and its character
- Architecture SDN, Performs a balanced distribution of traffic, increases the efficiency of using the bandwidth
| Specification | Detail |
|---|---|
| Product Name | Huawei NetEngine 8000E F1A |
| Switching Capacity | 2.4 Tbps |
| Forwarding Performance | 453 Mpps |
| Maximum Board Capability | Fixed-configuration (does not support flexible line cards) |
| Capacity Density (Gbps/U) | 1200 Gbps per U |
| Main Control Board / MPU | Fixed-configuration, 1:1 redundancy |
| SFU (Switch Fabric Unit) | Fixed-configuration |
| Line Card / Slot Count | Fixed configuration; no flexible line cards |
| Power Modules | 2 modules, 1+1 redundancy |
| Fan Modules | 4 fans, 3 + 1 redundancy |
| Dimensions (H × W × D) | 43.6 mm × 442 mm × 420 mm (1U height) |
| Typical Power Consumption | 325 W |
| Weight (Fully Configured) | ~ 8.4 kg |
| MTBF (Mean Time Between Failures) | DC: ~25.52 years; AC: ~25.65 years |
| MTTR (Mean Time To Repair) | 0.5 hour |
| Noise (Normal Temperature, Acoustic Power) | < 72 dB(A) |
| Input Voltage (Rated) | DC: –48 V / –60 V; AC: 100-240 V AC (supports also HVDC) |
| Operating Temperature (Long-Term) | 0°C to +45°C |
| condition | new |
|---|
