Router Huawei NetEngine 8000E M14
SKU
NetEngine 8000E M14
EAN:
21463
Condition:
new
Stock:
available on order
Lead time:
25-35 days
Huawei NetEngine 8000E / 8000 M14 Universal service router for all-scenario access & aggregation
Category: Huawei Router

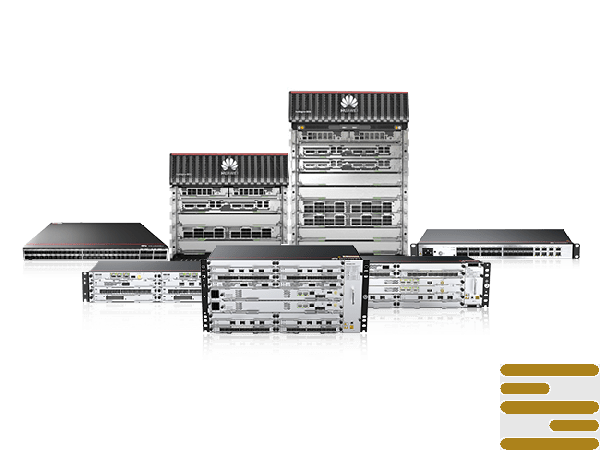

Routers Huawei NetEngine used in individual, private corporate networks of different sizes. The height of the apparatus varies from 2 U to 4 U, And the depth of the units at the same time is everything 220 mm, This feature of switches allows you to significantly save space in the hardware room..
Routers function Huawei NetEngine in a very wide range of temperatures that varies within - 40 up to + 60 degrees, which allows operation in complex, harsh environments.
Technical features:
- Unique chips of their own development Huawei Provide increased information transmission speeds
- «Hard» IP The channel improves the quality of services of a separate IP line
- Unique technologies IP FPM and hardware function BFD allow you to quickly and most importantly determine the fault and its character
- Architecture SDN, Performs a balanced distribution of traffic, increases the efficiency of using the bandwidth
| Specification | Detail |
|---|---|
| Product Name | Huawei NetEngine 8000E / 8000 M14 |
| Product Type | Universal service router for all-scenario access & aggregation |
| Chassis Height | 5U |
| Dimensions (H × W × D) | 222 mm × 442 mm × 220 mm |
| Full-Configuration Weight (DC version) | ~ 28.5 kg |
| Full-Configuration Weight (AC version) | ~ 30.0 kg |
| Typical Power Consumption (IPU-2T, DC) | ~ 1,187.81 W |
| Typical Power Consumption (IPU-2T, AC) | ~ 1,270.13 W |
| Other Power Modes (IPU-1T2, etc.) | Varied lower power consumption (for smaller IPU configs) |
| Switching Capacity | ~ 7.2 Tbps |
| Forwarding Performance | ~ 1,117 Mpps |
| Main Control Board Redundancy | 2 units, 1:1 redundancy |
| Service / Line Slots (IPU / Service Board Slots) | 14 service slots in DC chassis; 10 in some AC versions |
| Power Modules | Dual power modules with 1+1 redundancy |
| Fan Modules | 3 + 1 redundancy |
| Capacity Density (Gbps per U) | ~ 720 Gbps/U |
| Input Voltage (DC) | −48 V / −60 V (with range −40 V to −72 V) |
| Input Voltage (AC) | 100-127 V or 200-240 V AC; AC ranges approx 90-290 V; supports some HVDC |
| Typical Use / Scenarios | Broadband access, mobile bearer, private line, cloud bearer; supports various interface types (100GE, 50GE, 25GE, 10GE, GE/FE), SRv6, etc. |
| Reliability / Availability | High availability; MTTR ~ 0.5 hour; very high system reliability for carrier-grade deployment |
| Operating Environment | Standard telecom equipment-room conditions; temperature & humidity rated for access/aggregation use |
| condition | new |
|---|
