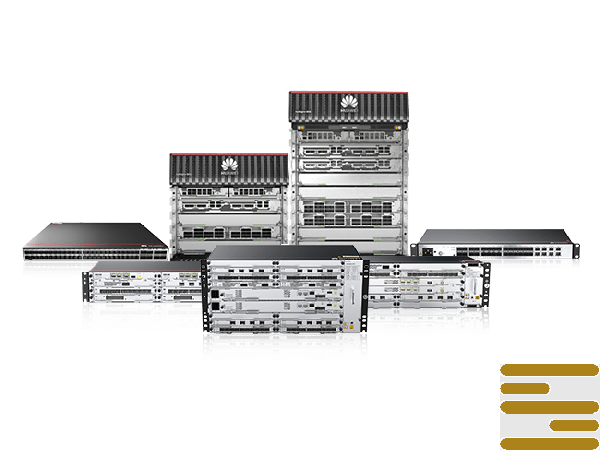

Router Huawei NetEngine 8000E M4
SKU
NetEngine 8000E M4
EAN:
21466
Condition:
new
Stock:
available on order
Lead time:
25-35 days
Huawei NetEngine 8000E M4 400GE / 100GE / 50GE / 25GE / 10GE / GE
Category: Huawei Router
Routers Huawei NetEngine used in individual, private corporate networks of different sizes. The height of the apparatus varies from 2 U to 4 U, And the depth of the units at the same time is everything 220 mm, This feature of switches allows you to significantly save space in the hardware room..
Routers function Huawei NetEngine in a very wide range of temperatures that varies within - 40 up to + 60 degrees, which allows operation in complex, harsh environments.
Technical features:
- Unique chips of their own development Huawei Provide increased information transmission speeds
- «Hard» IP The channel improves the quality of services of a separate IP line
- Unique technologies IP FPM and hardware function BFD allow you to quickly and most importantly determine the fault and its character
- Architecture SDN, Performs a balanced distribution of traffic, increases the efficiency of using the bandwidth
| Specification | Detail |
|---|---|
| Product Name | Huawei NetEngine 8000E M4 |
| Integrated Chassis Part Numbers | CR8PM4BASDCC (DC) / CR8PM4BASACC (AC) |
| Chassis Height (Rack Units) | 2U |
| Dimensions without packaging (H × W × D) | 88.9 mm × 442 mm × 220 mm |
| Dimensions with packaging (H × W × D) | 335 mm × 585 mm × 390 mm |
| Weight without packaging | 7.2 kg |
| Weight in full configuration (without packaging) | 10.4 kg |
| Weight with packaging (full configuration) | 13.1 kg |
| Typical Power Consumption (full configuration) | 283.4 W |
| Typical Heat Dissipation | ~ 919.47 BTU/h |
| MTBF (Mean Time Between Failures) | ~ 33.40 years |
| MTTR (Mean Time To Repair) | 0.5 hour |
| Availability | ~ 0.999998291 |
| CPU | 16-core, 2.0 GHz |
| Memory (RAM) | 16 GB |
| Flash Memory | 64 MB |
| Storage | 16 GB |
| Power Supply Mode | DC or AC versions |
| Rated Input Voltage (DC version) | –48 V / –60 V |
| Input Voltage Range (DC) | –40 V to –72 V |
| Rated Input Voltage (AC version) | 200-240 V or 100-127 V dual-live wire; supports HVDC |
| Input Voltage Range (AC) | 90 V to 290 V |
| Maximum Input Current (DC version) | 30 A |
| Number of Slots | 8 |
| Number of Service Board Slots | 4 |
| Switching Capacity | 2.4 Tbps |
| Forwarding Performance | 405 Mpps |
| Maximum Number of Physical Ports | 116 |
| Supported Interface Types | 400GE / 100GE / 50GE / 25GE / 10GE / GE |
| Noise Level at Normal Temperature | < 65 dB(A) |
| Power Cable Size Recommendations | Varies by installation distance (e.g. 4–10 mm²) |
| Airflow Direction | Left to right |
| Cooling Mode | Air-cooling, pluggable fans |
| Reliability / Redundancy | Single main control board (non-redundant controller) |
| condition | new |
|---|
