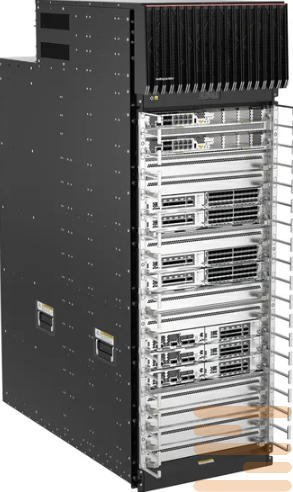

Router Huawei NetEngine 8000E X16
SKU
8000E X16
EAN:
21456
Condition:
new
Stock:
available on order
Lead time:
25-35 days
Huawei NetEngine 8000E X16 14.4 Tbps per slot (upgradable to 19.2 Tbps)
Category: Huawei Router
Routers Huawei NetEngine used in individual, private corporate networks of different sizes. The height of the apparatus varies from 2 U to 4 U, And the depth of the units at the same time is everything 220 mm, This feature of switches allows you to significantly save space in the hardware room..
Routers function Huawei NetEngine in a very wide range of temperatures that varies within - 40 up to + 60 degrees, which allows operation in complex, harsh environments.
Technical features:
- Unique chips of their own development Huawei Provide increased information transmission speeds
- «Hard» IP The channel improves the quality of services of a separate IP line
- Unique technologies IP FPM and hardware function BFD allow you to quickly and most importantly determine the fault and its character
- Architecture SDN, Performs a balanced distribution of traffic, increases the efficiency of using the bandwidth
| Specification | Detail |
|---|---|
| Product Name | Huawei NetEngine 8000E X16 |
| Series / Model | NetEngine 8000E |
| Switching Capacity | 692.6 Tbps |
| Forwarding Performance | 97,280 Mpps |
| Maximum Board Capability | 14.4 Tbps per slot (upgradable to 19.2 Tbps) |
| Capacity Density | 21,442 Gbps per U |
| Main Control Board Redundancy | 2 boards, 1:1 redundancy |
| Switch Fabric Units | 8 units, 7+1 redundancy |
| Line Card Slots | 16 LPU slots |
| Power Modules | Up to 20, N+1 redundancy |
| Fan Modules | 24 fans, 23+1 redundancy |
| Dimensions (H × W × D) | 1436 mm (32.3U) × 442 mm × 1033 mm |
| Typical Power Consumption | 24,015 W |
| Weight (Full Configuration) | 666.1 kg (with LPUI-4T boards) / 707.7 kg (with LPUI-14.4T boards) |
| Power Supply Options | AC: 200-240 V / HVDC: 240 V or 380 V / DC: −48 V or −60 V |
| Operating Temperature | 0°C to +40°C |
| Storage Temperature | −40°C to +70°C |
| Operating Humidity | 5% to 85% RH, non-condensing |
| Altitude (Operating/Storage) | Operating: ≤ 4000 m / Storage: < 5000 m |
| MTBF | 18.53 years |
| MTTR | 0.5 hour |
| condition | new |
|---|
