Routers Huawei NetEngine used in individual, private enterprise networks of all different sizes. Height of devices varies from 2 U Up to 4 U, a the depth of units is only 220 mm, This feature of the switches allows you to significantly save space in the equipment room.
Router functions Huawei NetEngine over a very wide temperature range, ranging from - 40 up to + 60 degrees, which allows you to use the units in difficult, adverse conditions.
Technical features:
- Unique chips of our own design Huawei provides increased information transfer rates
- «Hard» IP channel improves the quality of services of a separate IP line
- Unique technologies IP FPM and hardware function BFD allow you to quickly, and most importantly, accurately determine the fault and its nature
- Architecture SDN, implements balanced distribution of traffic, increases the efficiency of bandwidth use

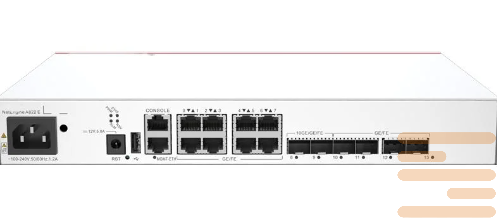

Router features Huawei A822 E:
|
Model
|
NetEngine A822 E
|
|
Dimensions (H x W x D)
|
43.6 mm (1U) x 320 mm x 220 mm
|
|
Cabinet depth
|
≥ 300 mm
|
|
Interface type
|
2*10GE + 4*GE/FE (optical) + 8 x GE/FE (electrical)
|
|
Switching capacity
|
54 Gbps
|
|
Height
|
1U
|
|
Weight
|
2.3 kg
|
|
SDRAM
|
4 GB
|
|
Typical power consumption
|
38 W
|
|
Power input
|
AC: 100 V to 240 V
|
|
Heat dissipation mode
|
System air cooling
|
|
Operating temperature
|
–5°C to +55°C
|
