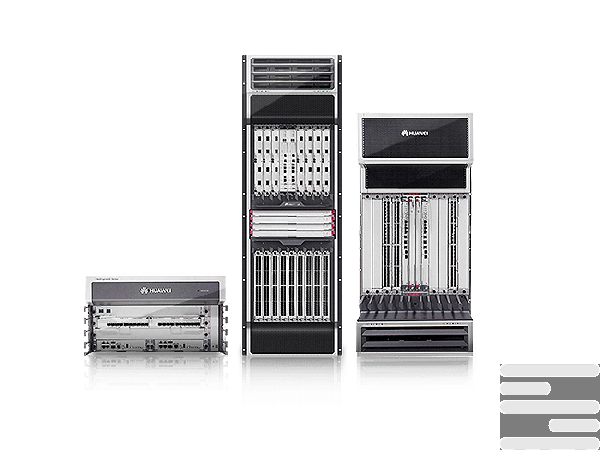

Router Huawei NetEngine40E-X16A
SKU
NetEngine40E-X16A
EAN:
21470
Condition:
new
Stock:
available on order
Lead time:
25-35 days
Huawei NetEngine40E-X16A is a high-performance universal service router offering up to ~82 Tbps switching capacity and ~14.5 million pps forwarding performance.
Category: Huawei Router
Routers Huawei NetEngine used in individual, private corporate networks of different sizes. The height of the apparatus varies from 2 U to 4 U, And the depth of the units at the same time is everything 220 mm, This feature of switches allows you to significantly save space in the hardware room..
Routers function Huawei NetEngine in a very wide range of temperatures that varies within - 40 up to + 60 degrees, which allows operation in complex, harsh environments.
Technical features:
- Unique chips of their own development Huawei Provide increased information transmission speeds
- «Hard» IP The channel improves the quality of services of a separate IP line
- Unique technologies IP FPM and hardware function BFD allow you to quickly and most importantly determine the fault and its character
- Architecture SDN, Performs a balanced distribution of traffic, increases the efficiency of using the bandwidth
| Specification | Detail |
|---|---|
| Product Name | Huawei NetEngine40E-X16A |
| Switching Capacity | 81.92 Tbps |
| Forwarding Performance | 14,464 Mpps |
| MPU Slots | 2 |
| SFU Slots | 4 |
| LPU Slots | 16 |
| Chassis Height (Rack Units) | 40U |
| Dimensions (H × W × D) | 1778 mm × 442 mm × 650 mm |
| Weight (Full Configuration, no packaging) | 356 kg |
| Maximum Power Consumption | 9,040 W (with “480G” bundle) |
| Typical Heat Dissipation | ≈ 29,330 BTU/hour (for “480G” bundle) |
| MTBF (Mean Time Between Failures) | ~ 22.33 years |
| MTTR (Mean Time To Repair) | 0.5 hour |
| Availability | ~ 0.9999974444 |
| Cabinet Installation Standard | Standard 19-inch cabinet; default Huawei 2.2m-high N68E cabinet |
| Noise (Acoustic Power) | NEBS-compliance (<78 dB(A) @ 27 °C) |
| Operating Temperature (Long-Term) | 0 °C to +45 °C |
| Short-Term Operating Temperature | –5 °C to +55 °C |
| Storage Temperature | –40 °C to +70 °C |
| Operating Humidity (Long-Term) | 5% to 85% RH, non-condensing |
| Storage Altitude | < 5,000 m |
| Operating Altitude | ≤ 4,000 m |
| Redundancy Features | 1:1 redundant MPUs; 3+1 redundant switch fabrics; redundant power supplies; multiple fan trays; ability to continue with one fan failure under certain temp conditions |
| condition | new |
|---|
