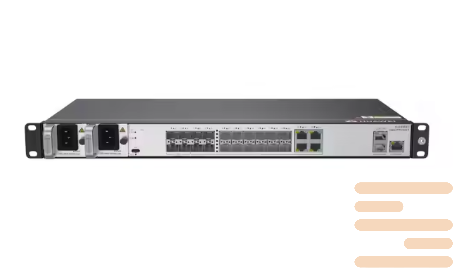

Router Huawei PTN 916-F
4 x 10 GE + 16 x GE/FE + 4 x GE/FE
Huawei's PTN 900 series not only represents the final word in the development of packet networks, it is becoming a symbol of a new stage in technological progress and innovation in the field of telecommunications. Its fast data transfer, reliability and uninterruptible connection set new standards for efficiency and versatility, revolutionizing approaches to building and managing networks.
Not only a technological breakthrough, but also craftsmanship in design characterize PTN 900. Compactness and flexibility combined with ease of maintenance make it an ideal choice for telecom operators looking to build networks of the future. It not only allows you to provide uninterrupted connectivity for customers, but also allows operators to save time and resources on network maintenance and support.
This series of products is not just technology, it is craftsmanship and innovation that transforms ordinary networks into efficient and dynamic infrastructures. It provides high quality of service to customers, facilitating the development of new services and providing economic benefits to operators due to reduced costs and improved network performance.
Router features Huawei PTN 916-F
|
Parameters |
PTN 916-F |
PTN 970 |
PTN 970C |
PTN 980 |
PTN 990E |
|
Switching Capacity |
60 Gbit/s |
190 Gbit/s |
190 Gbit/s |
800 Gbit/s |
1 Tbit/s |
|
Number of Slots |
Fixed, no slot for insertion (supports AC & DC) |
8 slots: 2 for main control boards, 6 for service boards |
8 slots: 2 for main control boards, 6 for service boards |
10 slots: 2 for main control boards, 8 for service boards |
16 slots: 2 for main control boards, 14 for service boards |
|
Interface Capacity per Device |
4 x 10 GE + 16 x GE/FE + 4 x GE/FE |
50 GE optical: 2 25 GE optical: 6 10 GE optical: 18 GE optical: 60 GE electrical: 48 FE optical: 60 FE electrical: 48 10M electrical: 48 STM-1 (VC4/VC12) optical: 24 E1: 192 |
50 GE optical: 2 25 GE optical: 6 10 GE optical: 18 GE optical: 60 GE electrical: 48 FE optical: 60 FE electrical: 48 10M electrical: 48 STM-1 (VC4/VC12) optical: 24 E1: 192 |
100 GE optical: 8 50 GE optical: 16 25 GE optical: 32 10 GE optical: 80 GE optical: 80 GE electrical: 32 FE optical: 80 FE electrical: 32 10M electrical: 32 STM-1 (VC4/VC12) optical: 16 E1: 128 |
100 GE optical: 10 50 GE optical: 20 25 GE optical: 40 10 GE optical: 100 GE optical: 140 GE electrical: 32 FE optical: 140 FE electrical: 32 STM-1 (VC4/VC12) optical: 16 E1: 128 |
|
Subrack Dimensions (W x D x H) |
442 x 220 x 44.5 mm (1U) |
442 x 220 x 88.9 mm (2U) |
442 x 220 x 88.9 mm (2U) |
442 x 220 x 133.35 mm (3U) |
442 x 220 x 222.25 mm (5U) |
|
Weight (Empty Loaded) |
4.2 kg |
4.2 kg |
4.2 kg |
5.7 kg |
26.1kg |
|
Working Voltage |
–48 V/–60 V power supply: –40 V to –72 V |
–48V/–60V power supply: –40 V to –72 V |
–48 V/–60 V power supply: –40 V to –73 V |
–48V/–60V power supply: –40 V to –74 V |
–48 V/–60 V power supply: –40 V to –75 V |
|
Standard Power Consumption |
75 W |
247.56 W |
247.56 W |
432.5 W |
480.24 W |
|
Environment Requirements |
Long-term working temperature: –40°C to 65°C Storage temperature: –40°C to 70°C Long-term working relative humidity: 10% to 90% Storage relative humidity: 10% to 100% Long-term working altitude: ≤ 4000 m Storage altitude: < 5000 m |
Long-term working temperature: –20°C to 60°C Storage temperature: –40°C to 70°C Long-term working relative humidity: 10% to 90% Long-term working altitude: ≤ 4000 m Storage altitude：< 5000 m |
Long-term working temperature: –20°C to +60°C Storage temperature: –40°C to 70°C Long-term working relative humidity: 10% to 90% Long-term working altitude: ≤ 4000 m Storage altitude: < 5000 m |
Long-term working temperature: –20°C to 60°C Storage temperature: –40°C to 70°C Long-term working relative humidity: 10% to 90% Storage relative humidity: 10% to 100% Long-term working altitude: ≤ 4000 m Storage altitude: < 5000 m |
Long-term working temperature: –5°C to 55°C Storage temperature: –40°C to 70°C Long-term working relative humidity: 10% to 90% Storage relative humidity: 10% to 100% Long-term working altitude: ≤ 4000 m Storage altitude：< 5000 m |
|
Service Types |
E-Line, E-LAN, L3VPN, CES, ATM, and IP over PW |
E-Line, E-LAN, CES |
E-Line, E-LAN, CES |
E-Line, E-LAN, CES |
E-Line, E-LAN, CES |
|
Service Protection |
IMA, ML-PPP, LMSP, LAG, MPLS Tunnel APS, PW APS, dual-homing protection, and ring network protection |
LMSP, LAG, MPLS Tunnel APS, PW APS, dual-homing protection, and ring network protection |
LMSP, LAG, MPLS Tunnel APS, PW APS, dual-homing protection, and ring network protection |
LMSP, LAG, MPLS Tunnel APS, PW APS, dual-homing protection, and ring network protection |
LMSP, LAG, MPLS Tunnel APS, PW APS, dual-homing protection, and ring network protection |
| condition | new |
|---|
