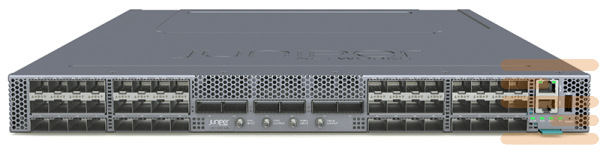

Router Juniper ACX7100-48L-DC-AO

SKU
ACX7100-48L-DC-AO
Call for Price
EAN: 17461
Stock: available on order
Lead time: 25-35 days
GPL price:

85050 $

ACX7100 DC AO 48 SFP56/6 QSFP56-DD

Routers Juniper ACX7024 — are highly secure, fixed, secure, multi-service hardware devices in a form factor 1U (24 cm) with data rate 360 Gbit/c, running on Junos Evolved OS and Paragon Automation.

The operating system provides port flexibility from 1GbE to 100GbE and provides strong data protection and multi-service support for service providers, enterprises and wholesalers. Small size and support for precise timing make routers Juniper ACX7024 excellent option for building mobile networks 4G/5G.

Devices from the line ACX7000 specially designed for use as the base of an IP service factory Juniper Cloud Metro.

The routers employ an innovative, high-speed chipset that strikes the perfect balance of system hierarchy design and sets new standards for robust high-performance platforms.

Routers ACX7000, controlled Junos OS Evolved And Juniper Paragon™ Automation Portfolio, equipped with an integrated Paragon Active Assurance system and a Zero Trust security kit, which allows operators to provide differentiated service and daily customer management.

Cost-effective and multi-service routers based on high-precision timing technologies and used for service providers, enterprises, residential areas (including PON with solution Juniper Unified PON Solution), IoT. and mobile applications 4G/5G.

Models ACX7024 equipped with 6 built-in fans (with reservation 5+1) they direct the airflow from front to back and to the side (with partition). A feature of the devices is that they are delivered to consumers immediately with two field-replaceable AC or DC power supplies. (reservation 1+1).

Efficient and highly economical thermal design ensures unlimited, uninterrupted use of the powerful transceiver 100GbE ZR on all supported ports. It includes precision timing capabilities, including increased class timing. C for 5G services with low, short delay and transceiver GPS / GNSS (global navigation satellite system) for best-in-class network interconnection.

Routers support next generation protocols including segment routing, SRv6, MPLS And Ethernet VPN (EVPN) — virtual extensible local area network (VXLAN), as well as any overlays, substrates or technical services. It provides the ability to provide network slicing with guaranteed service, network analytics and automation Juniper Paragon to increase network efficiency and simplicity, as well as ease of operation and management.


Router Specifications Juniper ACX7100-48L-DC-AO:

System throughput

ACX7100-48L: 4.775 Tbps

ACX7100-32C: 4.8 Tbps

Interface support

ACX7100-48L: 48x 10GE/25GE/50GE (SFP56), 6x 400GE (QSFP56-DD)

ACX7100-32C: 32x 100GE (QSFP-DD), 4x 400GE (QSFP56-DD)

Dimensions (W x H x D)

ACX7100-48L: 17.36 x 1.75 x 23.42 in (44.09 x 4.45 x 59.49 cm)

ACX7100-32C: 17.36 x 1.75 x 23.42 in (44.09 x 4.45 x 59.49 cm)

Weight

ACX7100-48L: 26.9 lbs. /12.22 kg

ACX7100-32C: 28.0 lbs. /12.70 kg

Power (AC)

ACX7100-48L: 115/240 VAC

ACX7100-32C: 115/240 VAC

Power (DC)

ACX7100-48L: -48 VDC through -60 VDC

ACX7100-32C: -48 VDC through -60VDC

Power draw

ACX7100-48L, Typical: 270W (without optics)

Maximum: 620W (without optics)

ACX7100-32C, Typical: 500W (without optics)

Maximum: 960W (without optics)

NOTE: Typical power consumption at 25° C Ambient, 50% load on all ports

Humidity

ACX7100-48L: 5% through 90% non-condensing

ACX7100-32C: 5% through 90% non-condensing

Noise level

ACX7100-48L: 75.6dBA

ACX7100-32C: 75.6dBA

Operating temperature

ACX7100-48L: Operating (0-40C), Short Term (0-55C) GR-63 NEBS-L3

ACX7100-32C: Operating (0-40C), Short Term (0-55C) GR-63 NEBS-L3
