High performance cutting edge routers Juniper Networks series MX are world-class hardware devices with innovative architectures that enable businesses and cloud Internet service providers to adapt and respond as quickly as possible to changing market conditions in the era of cloud computing, while expanding and accelerating the speed of service delivery.

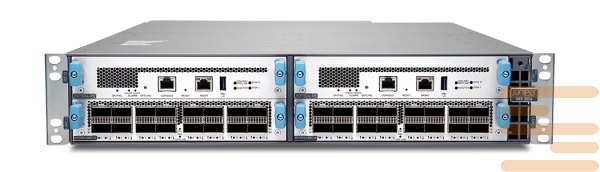

Routers MX304 provide high scalability and efficiency for hardware devices with limited physical space and total power.
Devices are able to change the economics per rack unit, they greatly simplify the design of the network and reduce the cost of building it..
Service providers and cloud computing operators are now investing in infrastructure that paves the way for digital unity, improves user experience, and supports new market trends with mobility, Internet technologies (IoT) and the rapid growth of cloud networking systems.
Unique routing platform Juniper Networks MX3041 — is a cloud era conglomerate that fully meets the changing demands of service providers, mobile operators, network operators and companies that provide multiple services at a minimal cost (MSO).
The series routers offer high-density 10GbE, 25GbE, 40GbE, 50GbE, 100GbE, and 400GbE connectivity in aMbspace- and energy-optimised package. Line hardware devices MX304 provides throughput 4,8 Tbit/with just two racks (RU), ensuring ideal density of routers. The systems also offer productive power while consuming 0,3 W>/ Gb bandwidth.
Routers operate on the Junos® Trio chipset and the Junos operating system, as well as the entire set of modern line routing platforms MX, MX304. Device features include a comprehensive suite of advanced automation and telemetry capabilities, the foundation for future independently managed networks, and line-rate encryption. 400GbE Media Access Control Security (MACsec) and built-in advanced sync.
Routers combine service-oriented, increased throughput and density with compactness and energy efficiency.
Models MX304 enable network operators to effectively handle hyperlinking and provide customers with a variety of services and applications in a profitable manner.
Router Specifications Juniper MX304-BASE:
|
System capacity
|
4.8 Tbps
|
|
DPCs and/or MPCs per chassis
|
N/A
|
|
LMICs and REs per chassis
|
1 RE and 3 LMICs or 2 REs (RE redundancy) and 2 LMICs
|
|
Chassis per rack
|
22
|
|
Dimensions (W x H x D)
|
17.3 x 3.5 x 24 in (8.89 x 44 x 61 cm)
|
|
Maximum weight
|
66.1 lb (30 kg) with a 2 Routing Engine configuration
|
|
Mounting
|
2/4-post rack mounting
|
|
Power options
|
200-240 VAC / 50-60 Hz or -48 VDC at 60A or HVAC/HVDC (180VAC – 305VAC / 190VDC – 410VDC)
|
|
Operating temperature
|
32° to 115° F (0° to 46° C) at sea level
|
|
Humidity
|
(Operating) 5 to 90 percent noncondensing
|
|
Altitude
|
Up to 6000 feet
|
