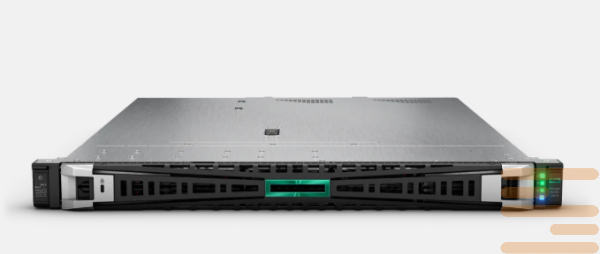

Server HPE ProLiant DL20 Gen11
DL20 Gen11 with Intel Xeon E-2436, 16 GB RAM, 4 SFF drives, 800W PSU
Edge computing servers (Edge Servers) designed for processing and analyzing data directly at the points of their generation - at remote sites, branches, industrial facilities and places with limited network bandwidth. Such architecture minimizes delays, reduces the load on central data centers and provides a rapid reaction of systems in real time.
The design of EDGE servers is focused on compactness, energy efficiency and reliability in conditions of work outside of traditional TDs-in rooms with limited space, with unstable power supply and increased requirements for protection against external influences. The servers are equipped with productive processors with high computing density and optimized for performing tasks artificial intelligence, streaming data processing, local analysis and predictive analytics.
Support for modern error-correcting memory standards (ECC) Provides stability of work and prevention of failure critical for peripheral systems. Use of high -speed NVMe drives and hybrid disk arrays guarantees minimal time access time and the possibility of storing local copies of information with subsequent synchronization.
Edge server food >It is a high level of failure resistance including reserving and working from uninterrupted power sources (UPS). Cooling systems are designed to take into account the features of operation in non -standard conditions, with the use of effective fans and mechanisms of passive heat removal, which ensures the safety.
An important component is the integrated management and monitoring of equipment that is carried out through the remote administration platforms with the possibility of automatic detection of faults and updating software without physical access to devices. Safety hardware includes protection of the boot chain, encryption and mechanisms of preventing unauthorized access.
Edge-Servers support broad compatibility with operating systems and containerization platforms, which allows you to deploy a variety of applications and services, including IoT, machine learning, video surveillance, production automation and much more. This infrastructure accelerates data processing, reduces delays and increases the resistance to business process failures.
The technical characteristics of the server HPE ProLiant DL20 Gen11:
| Category | Specification |
|---|---|
| Form Factor | 1U Rackmount |
| Processor Support | 1 × Intel Xeon E-2400 series (up to 8 cores) |
| Processor Cache | Up to 16 MB Intel Smart Cache, depending on processor |
| Processor Speed | Up to 5.8 GHz, depending on processor |
| Memory Type | HPE DDR5 Standard Memory |
| Memory Slots | 4 DIMM slots |
| Maximum Memory Capacity | Up to 128 GB with 32 GB DIMMs |
| Storage Options | - 2 × Non-hot plug LFF or 2 × Hot plug LFF or 4+2 Hot plug SFF |
| RAID Support | Intel VROC SATA (formerly known as Intel RSTe) |
| Networking | Embedded 1Gb 4-port BCM5720 Network Adapter |
| Expansion Slots | 2 PCIe slots (1 × x16, 1 × OCP 3.0 mezzanine) |
| Graphics | Matrox G200, 16 MB video memory |
| Management | HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download) |
| Security | Embedded Trusted Platform Module (TPM) 2.0 enabled by default |
| Power Supply | - 290W Platinum Power Supply- 500W or 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply (optional) |
| Operating System Support | Certified for Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi |
| Dimensions (W × H × D) | 43.46 cm × 4.28 cm × 60.51 cm |
| Weight | Approximately 12 kg |
| Warranty | 3-year parts, labor, and onsite support |
| condition | new |
|---|
