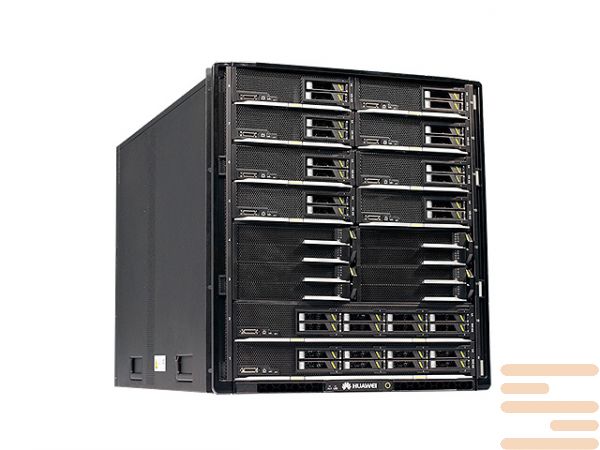

Server Huawei E9000 IT1K06E9000
Blade servers Huawei – provide high computational potential, are famous for their low power consumption and excellent scalability indicators. Aggregates are an optimal, and most importantly cost-effective solution for virtualization and consolidation of data computing, which are used in innovative information industries.
Servers run on a high performance processorВ Intel Xeon, Depending on the modification of the Huawei blade server, they can be equipped withВ from 32 to 48 DIMM-slots. Thanks to this, they perfectly scale the RAM to the desired size..
UsageВ 2.5-inch SAS or SATA HDD, or SSDВ drives will provide servers with a sufficiently high density of information data recording.
Blade server specifications Huawei E9000 IT1K06E9000:
|
Blade system |
FusionServer E9000 |
|
form factor |
Chassis height 12U |
|
connectors |
16 connectors 1/2 width or 8 slots full width |
| В |
Provides flexible configuration of servers with complete and connectors 1/2 width |
|
Switches |
4 connectors for switches Huawei CX series provide backplane bandwidth up to 32 Tbit per second |
| В |
switch CX110 GE : 12 GE ports + 4 10GE ports upstream, 32 GE ports downstream |
| В |
switch CX111 GE: 12 GE ports + 4 10GE ports upstream, 32 GE ports downstream |
| В |
transit module CX116 GE: 32 upstream GE ports, 32 downstream GE ports |
| В |
switch CX210 8G FC: 8 ports 8G FC upstream, 16 ports 8G FC downstream |
| В |
switch CX220 16G FC: 8 ports 16G FC upstream, 16 ports 16G FC downstream |
| В |
switch CX310 10 GE: 16 10 GE ports upstream, 32 10 GE ports downstream |
| В |
converged switch CX311 10 GE/FCoE: 16 ports 10 GE + 8 ports 8G FC upstream, 32 10 GE ports downstream |
| В |
transit module CX317 10 GE: 32 10 GE ports upstream, 32 10 GE ports downstream |
| В |
transit module CX318 10 GE: 32 10 GE ports upstream, 32 10 GE ports downstream |
| В |
switch CX320 10 GE: 8 10 GE ports + 2 40 GE ports upstream, selectable flexible interface card, 32 10 GE ports downstream |
| В |
switch CX611 InfiniBand (QDR 40 Gbit/with, FDR 56 Gbit/with): 18 ports QDR/FDR upstream, 16 ports QDR/FDR downstream |
| В |
switch CX710 40 GE: 8 40 GE ports upstream, 16 40 GE ports downstream |
| В |
Multi-Profile Switch CX912, port support FC: 16 ports 10 GE + 8 ports 8G FC upstream, 32 ports 10 GE + 16 ports 8G FC downstream |
| В |
Multi-Profile Switch CX915: 4 10 GE ports + 12 GE ports + 8 ports 8G FC upstream, 32 GE ports + 16 ports 8G FC downstream |
| В |
Multi-Profile Switch CX916: 8 ports 10 GE/25 GE + 2 40 GE ports + 8 ports 16G FC upstream, selectable flexible interface card, 32 ports 10 GE + 16 ports 16G FC downstream |
|
Power supplies |
AC or DC power supplies: 6 AC power supplies 3V 000W/2V 000W or 6 x 2V 500W DC hot-swappable N+N redundant power supplies or N+M |
|
Cooling |
14 hot-swappable N+1 redundant fan modules |
|
Control |
The 1+1 redundancy scheme is controlled by the module HMM. Supports standard control interfaces such as SNMP and IPMI. Unification of the management of computing and switching devices is achieved due to the graphical user interface, port KVM for server management, virtual tools, SOL, intelligent power supply, remote control and equipment monitoring functions, and saving energy consumption data. |
| В |
Additional features that optimize management — Management cascaded by Lkami, graphical network configuration tools, stateless calculations. |
|
Power supply |
110B B/220 HV AC or -48V HV DC |
|
Operating temperature |
from 5В°C before 40В°C |
|
Dimensions |
Height: 530 mm |
| В |
Width: 442 mm |
| В |
Depth: 840 mm |
В
В
| condition | new |
|---|
