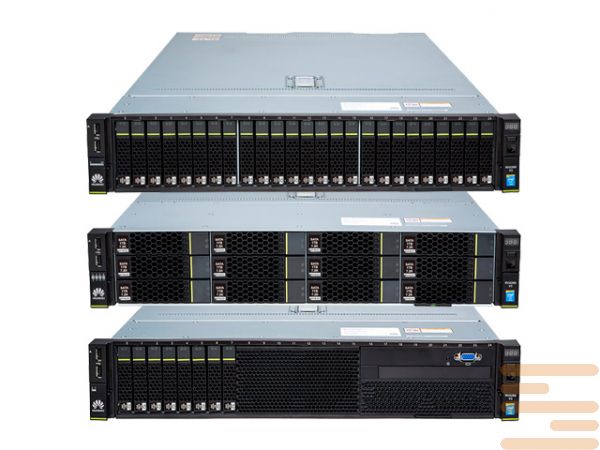

Server Huawei FusionServer RH2288 V3 BC2M02HGSB

processors

One or two series processors Intel Xeon E5-2600 V3/V4

RAM

16 modules RDIMM/LRDIMM DDR4

ROM

Hard Drive Configurations:
8 Solid-state drives or 2.5-inch hard drives with interfaces SAS/SATA;
12 hard drives 3.5-inch with interfaces SAS or SATA HDDs front or 2 or 4 2.5" or 3.5" hard drives SSDs or SAS or SATA HDDs;
12 hard drives 3.5-inch with interfaces SAS or SATA HDDs from the front (Model NVMe supports 4 SSDs with interfaces NVMe) and two 2.5" or 3.5" hard drives SSDs or SAS or SATA HDDs from the back;
24 2.5" hard drives or solid state drives with interfaces SAS or SATA HDDs;
25 2.5" hard drives or solid state drives with interfaces SAS or SATA HDDs on the front and two or three 2.5" HDDs or SSDs SSDs or SAS or SATA HDDs from the back.
Support built-in flash card: 2 SD-cards

support RAID

RAID 0, 1, 10, 5, 50, 6 or 60;
Additional supercapacitor;
Level change RAID without shutting down the system, configuration memory, self-diagnosis and remote configuration via web interface.

Network ports LOM

2 GE or 4 GE ports or 2 x 10 GE ports or 2 x 56 Gbit/with FDR InfiniBand-port

Extension PCIe

Up to 6 slots PCIe 3.0

Ventilation modules

Hot-swappable N+1 redundant fan modules

PSU

two blocks PSU redundant 1+1 hot swappable

Control

Uses Huawei Hi1710 control chips and independent ports, supports standard control interfaces such as SNMP and IPMI, provides a graphical user interface, tools KVM remote access, virtual environment, SOL, tool for predictive failure analysis (PFA), intelligent power supply, remote control and equipment monitoring functions.
Control software supported Huawei eSight and integration with third-party control systems, such as VMware vCenter, Microsoft SystemCenter and Nagios.
