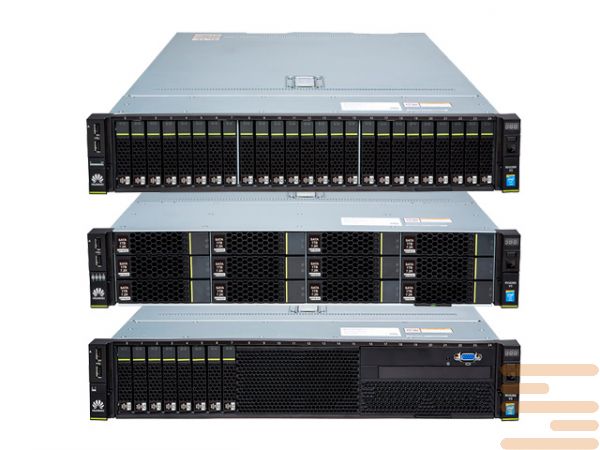

Server Huawei FusionServer RH2288 V3 BC4MA0HGSB

SKU
BC4MA0HGSB
Call for Price
EAN: 16667
Stock: available on order
Lead time: 25-35 days
Overseas 12HD Typical Configuration1 (1*E5-2609 V3 CPU,1*8GB DIMM,No Raid Card,No HDD,2*GE,1*460W PSU,No DVD,Static Rail Kit)

rack serversВ Huawei FusionServerВ Provide optimal computing power, provide over high capacity of local storage and flexible scaling solutions.

ServersВ Huawei FusionServerВ thanks to innovative technologies, they are ideal units for storing "cold" information, as well as for video surveillance systems, cloud storage and applicationsВ Big Data.

Servers are equipped with ultra-new processorsВ Intel ScalableВ first or second generation. The fully configured hardware processor supports up toВ 28 nucleiВ and uses the busВ Ultra Path Intercorrect, which provides data transfer at a speedВ 10 GT/with.

Increased server scalability with support for up to five expansion slotsВ PCIe 3.0, including one slot forВ RAID-controller. In seriesВ Huawei FusionServerВ supportВ Serial over LAN (SOL), remoteВ KVMВ and remote start and shutdown of devices through an independentВ iBMC.

Server characteristics Huawei FusionServer RH2288 V3 BC4MA0HGSB:

processors

One or two series processors Intel Xeon E5-2600 V3/V4

RAM

16 modules RDIMM/LRDIMM DDR4

ROM

Hard Drive Configurations:
8 Solid-state drives or 2.5-inch hard drives with interfaces SAS/SATA;
12 hard drives 3.5-inch with interfaces SAS or SATA HDDs front or 2 or 4 2.5" or 3.5" hard drives SSDs or SAS or SATA HDDs;
12 hard drives 3.5-inch with interfaces SAS or SATA HDDs from the front (Model NVMe supports 4 SSDs with interfaces NVMe) and two 2.5" or 3.5" hard drives SSDs or SAS or SATA HDDs from the back;
24 2.5" hard drives or solid state drives with interfaces SAS or SATA HDDs;
25 2.5" hard drives or solid state drives with interfaces SAS or SATA HDDs on the front and two or three 2.5" HDDs or SSDs SSDs or SAS or SATA HDDs from the back.
Support built-in flash card: 2 SD-cards

support RAID

RAID 0, 1, 10, 5, 50, 6 or 60;
Additional supercapacitor;
Level change RAID without shutting down the system, configuration memory, self-diagnosis and remote configuration via web interface.

Network ports LOM

2 GE or 4 GE ports or 2 x 10 GE ports or 2 x 56 Gbit/with FDR InfiniBand-port

Extension PCIe

Up to 6 slots PCIe 3.0

Ventilation modules

Hot-swappable N+1 redundant fan modules

PSU

two blocks PSU redundant 1+1 hot swappable

Control

Uses Huawei Hi1710 control chips and independent ports, supports standard control interfaces such as SNMP and IPMI, provides a graphical user interface, tools KVM remote access, virtual environment, SOL, tool for predictive failure analysis (PFA), intelligent power supply, remote control and equipment monitoring functions.
Control software supported Huawei eSight and integration with third-party control systems, such as VMware vCenter, Microsoft SystemCenter and Nagios.
