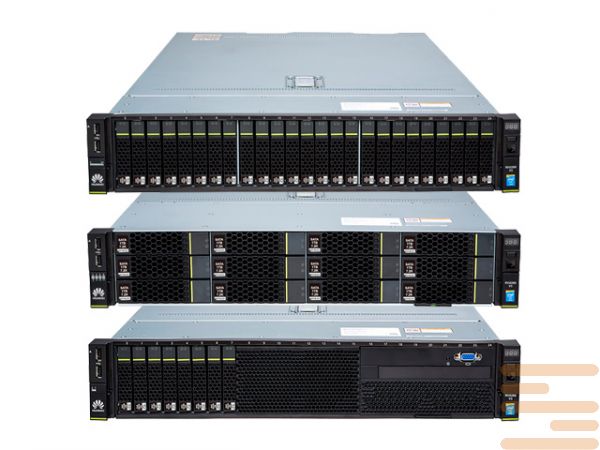

Server Huawei FusionServer RH2288H V3 BC4M02HGSA

processors

IntelВ® XeonВ® E5-2600 v3/v4

memory

24 memory module DDR4 RDIMM or LRDIMM

Internal storage system

Hard Drive Configurations:
8 front 2.5" HDD or SSD disks with interfaces SAS/SATA;
12 front 3.5-inch HDD SATA and 2 or 4 rear 2.5" or 3.5" interfaces SSDs, SAS, or SATA HDDs;
12 front 3.5-inch SAS or SATA HDDs (Model NVME supports 4 drives NVMe SSD) and 2 rear 2.5" or 3.5" with interfaces SSDs, SAS, or SATA HDDs;
12 front 3.5-inch SAS or SATA HDDs (Model NVME supports 12 drives NVMe SSD);
25 front 2.5-inch SSDs, SAS or SATA HDDs and 2 or 3 rear 2.5" with interfaces SSDs, SAS, or SATA HDDs.
Support for built-in flash cards:
Two cards SD

support RAID

RAID 0, 1, 10, 5, 50, 6 or 60;
Optional supercapacitor to protect against loss of data from the cache in the event of a power outage or power failure;
State change RAID, configuration memories, self-diagnostics and web-based remote configuration.

Network ports LOM

Support 2/4-x GE ports/2-x 10 GE ports/two 56G IB ports

Extension PCIe

Up to 9 slots PCIe 3.0

Ventilation modules

Hot-swappable redundant fan modules N+1

PSU

two modules PSU hot swappable redundant 1+1

Control

Uses Huawei Hi1710 control chip and independent ports, supports standard control interfaces such as, SNMP and IPMI, provides GUI (User interface), remote KVM (keyboard, mouse, video camera), virtual media, SOL, Proactive malfunctional analysis (PFA), intelligent power system, remote control, hardware monitoring and integrates LCD touch panel diagnostics
Supports software control eSight Huawei and integration with third party control systems such as, VMware vCenter, Microsoft SystemCenter and Nagios
