rack serversВ Huawei FusionServerВ Provide optimal computing power, provide over high capacity of local storage and flexible scaling solutions.
ServersВ Huawei FusionServerВ thanks to innovative technologies, they are ideal units for storing "cold" information, as well as for video surveillance systems, cloud storage and applicationsВ Big Data.
Servers are equipped with ultra-new processorsВ Intel ScalableВ first or second generation. The fully configured hardware processor supports up toВ 28 nucleiВ and uses the busВ Ultra Path Intercorrect, which provides data transfer at a speedВ 10 GT/with.
Increased server scalability with support for up to five expansion slotsВ PCIe 3.0, including one slot forВ RAID-controller. In seriesВ Huawei FusionServerВ supportВ Serial over LAN (SOL), remoteВ KVMВ and remote start and shutdown of devices through an independentВ iBMC.

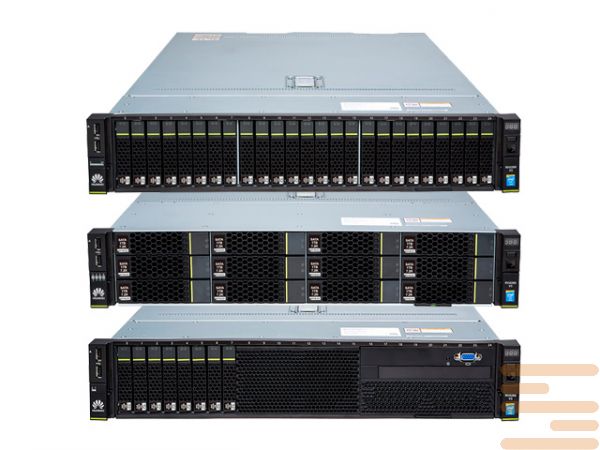

Server characteristics Huawei FusionServer RH2288H V3 BC4M21HGSA:
|
processors
|
IntelВ® XeonВ® E5-2600 v3/v4
|
|
memory
|
24 memory module DDR4 RDIMM or LRDIMM
|
|
Internal storage system
|
Hard Drive Configurations:
8 front 2.5" HDD or SSD disks with interfaces SAS/SATA;
12 front 3.5-inch HDD SATA and 2 or 4 rear 2.5" or 3.5" interfaces SSDs, SAS, or SATA HDDs;
12 front 3.5-inch SAS or SATA HDDs (Model NVME supports 4 drives NVMe SSD) and 2 rear 2.5" or 3.5" with interfaces SSDs, SAS, or SATA HDDs;
12 front 3.5-inch SAS or SATA HDDs (Model NVME supports 12 drives NVMe SSD);
25 front 2.5-inch SSDs, SAS or SATA HDDs and 2 or 3 rear 2.5" with interfaces SSDs, SAS, or SATA HDDs.
Support for built-in flash cards:
Two cards SD
|
|
support RAID
|
RAID 0, 1, 10, 5, 50, 6 or 60;
Optional supercapacitor to protect against loss of data from the cache in the event of a power outage or power failure;
State change RAID, configuration memories, self-diagnostics and web-based remote configuration.
|
|
Network ports LOM
|
Support 2/4-x GE ports/2-x 10 GE ports/two 56G IB ports
|
|
Extension PCIe
|
Up to 9 slots PCIe 3.0
|
|
Ventilation modules
|
Hot-swappable redundant fan modules N+1
|
|
PSU
|
two modules PSU hot swappable redundant 1+1
|
|
Control
|
Uses Huawei Hi1710 control chip and independent ports, supports standard control interfaces such as, SNMP and IPMI, provides GUI (User interface), remote KVM (keyboard, mouse, video camera), virtual media, SOL, Proactive malfunctional analysis (PFA), intelligent power system, remote control, hardware monitoring and integrates LCD touch panel diagnostics
Supports software control eSight Huawei and integration with third party control systems such as, VMware vCenter, Microsoft SystemCenter and Nagios
|
