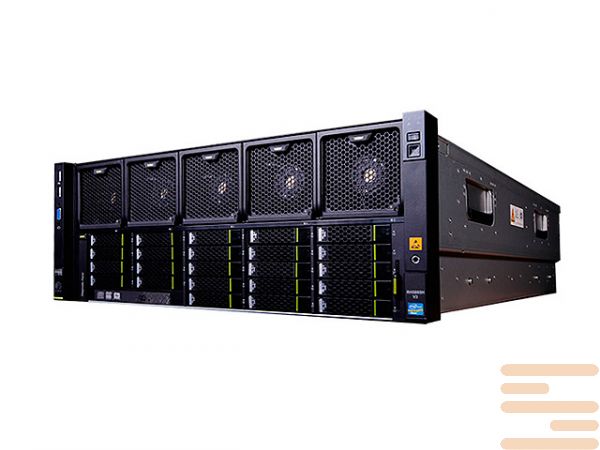

Server Huawei FusionServer RH5885H V3 BC6M39BFSA
rack serversВ Huawei FusionServerВ Provide optimal computing power, provide over high capacity of local storage and flexible scaling solutions.
ServersВ Huawei FusionServerВ thanks to innovative technologies, they are ideal units for storing "cold" information, as well as for video surveillance systems, cloud storage and applicationsВ Big Data.
Servers are equipped with ultra-new processorsВ Intel ScalableВ first or second generation. The fully configured hardware processor supports up toВ 28 nucleiВ and uses the busВ Ultra Path Intercorrect, which provides data transfer at a speedВ 10 GT/with.
Increased server scalability with support for up to five expansion slotsВ PCIe 3.0, including one slot forВ RAID-controller. In seriesВ Huawei FusionServerВ supportВ Serial over LAN (SOL), remoteВ KVMВ and remote start and shutdown of devices through an independentВ iBMC.
Server characteristics Huawei FusionServer RH5885H V3 BC6M39BFSA:
|
processors |
IntelВ® XeonВ® E7-4800 v3/v4 or E7-8800 v3/v4 |
|
memory |
96 modules DDR3 RDIMM |
|
Internal storage |
8 or 23 2.5" drives SAS/SATA HDD or SSD, 8 2,5-inch disk SAS/SATA HDD and 4 x 2.5" drives NVMe |
|
support RAID |
RAID 0, 1, 10, 5, 50, 6 or 60 Super Capacitor (included on request) |
|
Network ports LOM |
2 or 4 GE ports or 2 ports 10 GE |
|
Extension PCIe |
Up to 17 slots PCIe (in t.h. 1 slot for RAID) |
|
Ventilation modules |
5 hot-swap fan modules in redundant mode N+1 |
|
PSU |
modules PSU hot swappable in 1+1 redundant mode or 2+2 |
|
Control |
Uses Huawei Hi1710 control chip and independent ports, supports standard control interfaces such as, SNMP and IPMI, provides GUI (User interface), remote KVM (keyboard, mouse, video camera), virtual media, SOL, Proactive malfunctional analysis (PFA), intelligent power system, remote control, hardware monitoring; Supports software control eSight Huawei and integration with third party control systems such as, VMware vCenter, Microsoft SystemCenter and Nagios. |
В
В
| condition | new |
|---|
