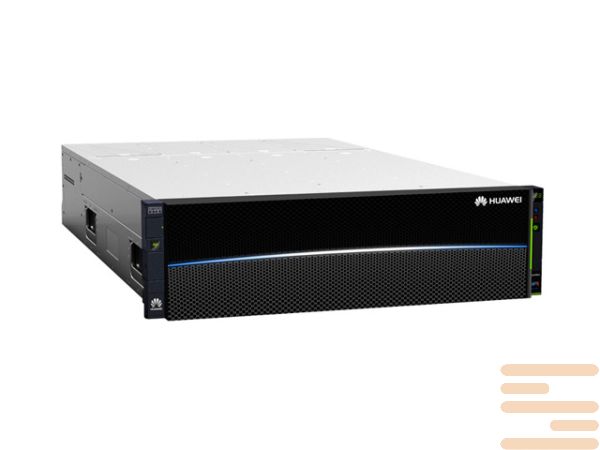

Storage System Huawei OceanStor 5500 V3 55V3-128G-DC210
Storage systemsВ Huawei OceanStor consist of arrays of different price segments. This makes them available to both large and small businesses..
Storage systems are divided into: disk arrays, tape virtual libraries, solid-state arrays and others. All of the above arrays perform a specific, individual task..
So, for example, solid-state arrays provide high data processing speed. They consist of two controllers, in connection with which there is no unified point of refusal. Disk arrays provide excellent scalability and are great for medium-sized businesses.
Storage systemsВ HuaweiВ OceanStorВ support options such as dynamic capacity provisioningВ HyperThin, automatic movement of information between different levelsВ SmartTierВ and service quality managementВ SmartQoS.
Specifications of data storage system Huawei OceanStor 55V3-128G-DC210:
|
System cache (expands with the number of controllers) |
48 Gb ~ 512 Gb |
|
Maximum number of controllers |
8 |
|
Supported storage protocols |
Fibre Channel, FCoE, iSCSI, InfiniBand, NFS, CIFS, HTTP, FTP |
|
Port types |
1 Gbit/with Ethernet, 10 Gbit/with FCoE, 10 Gbit/with TOE, 16 Gbit/with FC, 56 Gbit/with InfiniBand, SAS 3.0 (interior, 4 x 12 Gbit/from to port) |
|
Maximum number of drives supported by two controllers |
750 |
|
Maximum number of external ports per controller |
20 |
|
Maximum number of modules I/O per controller |
2 |
|
Disc Types and Supported Levels RAID |
Disc types: SSD, SAS and NL-SAS |
|
Maximum initial capacity(Configuration All-SSD) |
2700 Tb |
|
Gateway Mode |
Supported |
|
Virtualization Features |
Heterogeneous virtualization: Combining the storage resources of widespread products for flexible and unified management and distribution. |
В
В
| condition | new |
|---|
