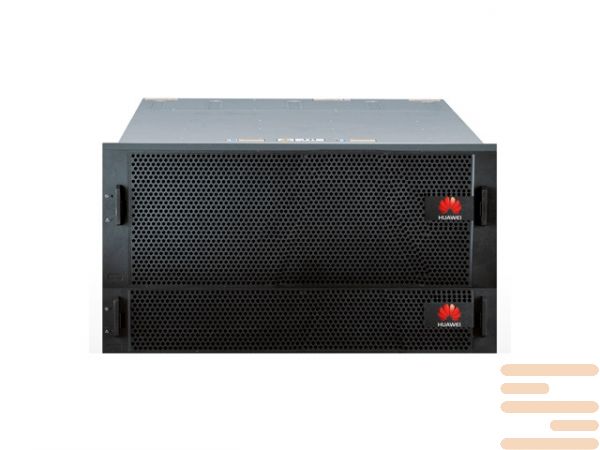

Storage System Huawei OceanStor 5500 V5
Storage systemsВ Huawei OceanStor consist of arrays of different price segments. This makes them available to both large and small businesses..
Storage systems are divided into: disk arrays, tape virtual libraries, solid-state arrays and others. All of the above arrays perform a specific, individual task..
So, for example, solid-state arrays provide high data processing speed. They consist of two controllers, in connection with which there is no unified point of refusal. Disk arrays provide excellent scalability and are great for medium-sized businesses.
Storage systemsВ HuaweiВ OceanStorВ support options such as dynamic capacity provisioningВ HyperThin, automatic movement of information between different levelsВ SmartTierВ and service quality managementВ SmartQoS.
Specifications of data storage system Huawei OceanStor 5500 V5:
|
processor |
Multi-core processors |
|
System cache (expandable by adding controllers) |
from 128 GB before 1 024 GB |
|
Maximum number of controllers |
8 |
|
Supported storage protocols |
Fibre Channel, FCoE, iSCSI, InfiniBand, NFS, CIFS, FTP, HTTP |
|
Types of external ports |
Fibre Channel 16 Gbit/with, Fibre Channel 8 Gbit/with, FCoE 10 Gbit/with, Ethernet 1 Gbit/with or 10 Gbit/with, InfiniBand 56 Gbit/with |
|
Types of internal ports |
SAS 3.0 (each port supports 4 x 12 Gbit/with) |
|
Data protection software |
HyperSnap (snapshot function), HyperClone (clone function) |
|
Critical application protection software |
SmartQoS (intelligent service quality control) |
|
Resource Efficiency Software |
SmartMigration (intelligent migration of LUNs), SmartVirtualization (intellectual virtualization of resources of heterogeneous systems) |
|
Virtualization environments |
Virtualization platforms: FusionSphere, VMware, XenServer, Hyper-V |
В
В
| condition | new |
|---|
