Storage System Huawei OceanStor 6800F v5

SKU
6800F v5

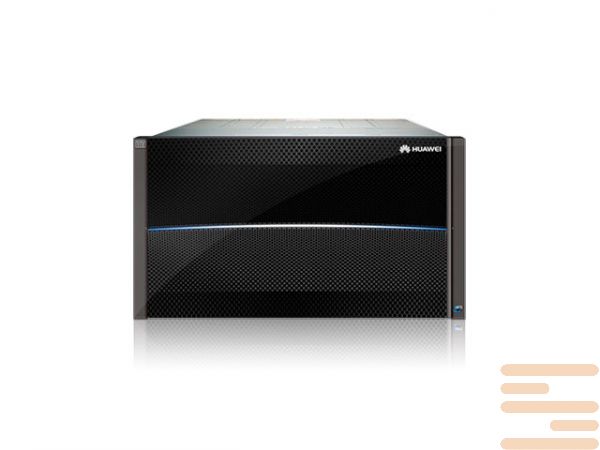

main product photo
Call for Price
EAN: 16758
Stock: available on order
Lead time: 25-35 days
Latency <1 ms, up to 8 controllers, up to 8 TB of cache, Fiber Channel, FCoE, iSCSI, InfiniBand, NFS, CIFS, FTP and HTTP, SAS 3.0, 1500 drives
Category: Huawei Server

Contacts
+36 20 807 9600
[email protected]

90 Days Return
If goods have problems

Secure Payment
100% secure payment

Storage systemsВ Huawei OceanStor consist of arrays of different price segments. This makes them available to both large and small businesses..

Storage systems are divided into: disk arrays, tape virtual libraries, solid-state arrays and others. All of the above arrays perform a specific, individual task..

So, for example, solid-state arrays provide high data processing speed. They consist of two controllers, in connection with which there is no unified point of refusal. Disk arrays provide excellent scalability and are great for medium-sized businesses.

Storage systemsВ HuaweiВ OceanStorВ support options such as dynamic capacity provisioningВ HyperThin, automatic movement of information between different levelsВ SmartTierВ and service quality managementВ SmartQoS.

Specifications of data storage system Huawei OceanStor 6800F v5:

Architecture

Architecture SmartMatrix all-flash

Delay

< 1 ms

Maximum number of controllers

8

processors

Multi-core processors

System cache (expandable by adding controllers)

from 512 GB before 8 Tb

Supported storage protocols

Fibre Channel, FCoE, iSCSI, InfiniBand, NFS, CIFS, FTP and HTTP

Types of external ports

Fibre Channel 16 Gbit/with, Fibre Channel 8 Gbit/with, FCoE 10 Gbit/with, Ethernet 1/10 Gbit/with and InfiniBand 56 Gbit/with

Types of internal ports

SAS 3.0 (each port supports 4 x 12 Gbit/with)

Maximum number of disks

1 500

Disk type

SSD corporate class
В

Virtualization platforms: FusionSphere, VMware, XenServer and Hyper-V
Additional functions: VMware VAAI/VASA/SRM, Hyper-V
vSphere, vCenter

Data protection software

HyperSnap (snapshot function), HyperClone (clone function)
HyperCopy (copy function), HyperMirror (volume mirroring feature)
HyperMetro (active-active arraysВ»), HyperReplication (remote replication)
HyperLock (WORM), HyperVault (all-in-one backupВ»)

Critical application protection software

SmartQoS (intelligent service quality control)
SmartPartition (intelligent disk partitioning)

Resource Efficiency Software
  • SmartMigration (iintelligent migration of LUNs)
  • SmartVirtualization (intelligent heterogeneous virtualization)
  • SmartMulti-tenant (smart multiplayer control)
  • SmartQuota (quota management)
  • SmartDedupe (intelligent deduplication)
  • SmartCompression (intelligent compression)
  • SmartThin (intelligent flexible provisioning)
  • SmartMotion (intelligent data movement)
  • SmartErase (smart data destruction)

Storage management software

UltraPath (host multipathing facility), BCManager (Emergency recovery management)
DeviceManager (Single device management software), eSight (Software for centralized management of operation and maintenance processes)
eService (remote maintenance and control)
