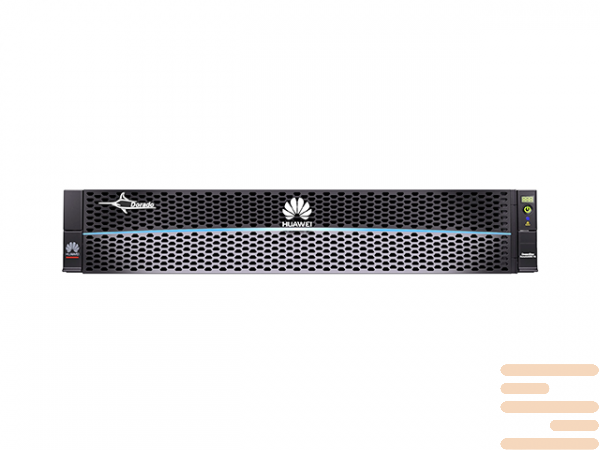

Storage System Huawei OceanStor Dorado 5000 V6
Storage systemsВ Huawei OceanStor consist of arrays of different price segments. This makes them available to both large and small businesses..
Storage systems are divided into: disk arrays, tape virtual libraries, solid-state arrays and others. All of the above arrays perform a specific, individual task..
So, for example, solid-state arrays provide high data processing speed. They consist of two controllers, in connection with which there is no unified point of refusal. Disk arrays provide excellent scalability and are great for medium-sized businesses.
Storage systemsВ HuaweiВ OceanStorВ support options such as dynamic capacity provisioningВ HyperThin, automatic movement of information between different levelsВ SmartTierВ and service quality managementВ SmartQoS.
Specifications of data storage system Huawei OceanStor Dorado 5000 V6:
|
Maximum number of controllers |
16 |
|
Maximum cache capacity (dual controllers, expandable by adding controllers) |
256 GB–4 Tb |
|
Storage Protocols |
FC and iSCSI |
|
Types of external ports |
FC/FC-NVMe 8/16/32 Gbit/with, Ethernet 10/25/40/100 Gbit/with |
|
Types of internal ports |
NVMe Over Fabric and SAS 3.0 |
|
Maximum number of input modules/hot swappable outputs per controller |
12 |
|
Maximum number of external ports per controller |
48 |
|
Maximum number of disks SSD |
1600 |
|
SSD-Disks |
SAS SSD: 960 GB, 1,92 Tb, 3,84 Tb, 7,68 Tb, 15,36 Tb, 30,72 Tb |
|
levels RAID |
RAID 5, RAID 6, RAID 10* and RAID-TP (Resistance to simultaneous failure of 3 disks SSD) |
|
Additional functions |
|
|
Storage management software |
DeviceManager (device management), UltraPath (Multichannel Introduction Management), eService (remote maintenance and control) |
В
В
| condition | new |
|---|
