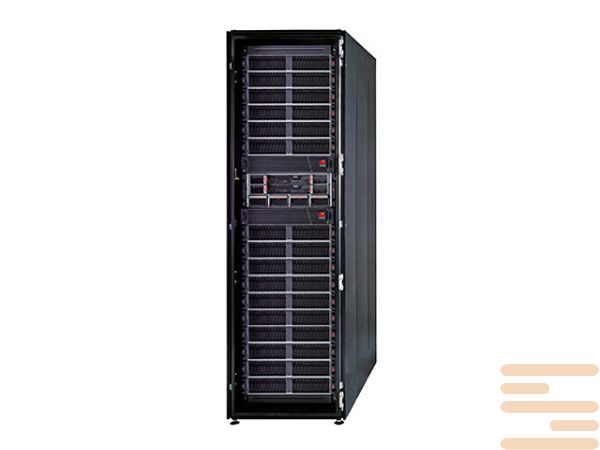

Storage System Huawei OceanStor Series N8500 N8500-ENT-N2M96G-G8-DC-1
Storage systemsВ Huawei OceanStor consist of arrays of different price segments. This makes them available to both large and small businesses..
Storage systems are divided into: disk arrays, tape virtual libraries, solid-state arrays and others. All of the above arrays perform a specific, individual task..
So, for example, solid-state arrays provide high data processing speed. They consist of two controllers, in connection with which there is no unified point of refusal. Disk arrays provide excellent scalability and are great for medium-sized businesses.
Storage systemsВ HuaweiВ OceanStorВ support options such as dynamic capacity provisioningВ HyperThin, automatic movement of information between different levelsВ SmartTierВ and service quality managementВ SmartQoS.
Specifications of data storage system Huawei OceanStor Series N8500 N8500-ENT-N2M96G-G8-DC-1:
|
Model |
N8500 |
|
|
Technical characteristics of equipment |
||
|
Architecture |
Multi-node cluster architecture Active-Active |
|
|
Number of nodes |
2 – 24 |
|
|
Cache/node |
Basic version: 16 GB |
|
|
GE Ports/node |
Standard configuration: 4 x GE, before 16 x GE |
|
|
10 GE Ports/node |
before 6 x 10 GE |
|
|
Disk type |
SAS, NL SAS, SSD |
|
|
Physical capacity |
Dynamically expandable up to 15 PB |
|
|
Software features |
||
|
levels RAID |
0, 1, 3, 5, 6, 10, 50 |
|
|
File system size |
Dynamically expandable to 256 Tb |
|
|
Maximum number of shots |
512 (for file system) |
|
|
Network storage protocols |
FC, FCoE, iSCSI, NFS, CIFS, FTP, HTTP |
|
|
Access control |
NIS, Microsoft Active Directory, LDAPВ |
|
|
Other protocols |
NDMP LAN-FREE, SNMP, NTP, SMI-S |
|
|
Value Added Functions |
DST (dynamic storage), Snapshot, Mirror, Quota, Replication, WORM, SmartCache (Dynamic data caching technology), HyperThin (subtle provision), HyperImage (snapshot), HyperCopy (copy LUN), HyperClone (split mirror) and HyperMirror (synchronous / asynchronous remote replication) |
|
|
Quota |
NFS/CIFS soft/hard |
|
|
Control mode |
GUI, CLI |
|
|
Compatible operating systems |
Windows, Linux, Mac OS, Solaris, AIX, and HP-UX |
|
|
Alarm modes |
Email, SNMP, and Syslog |
|
|
physical characteristics |
||
|
Source of power |
AC: 100 V up to 127 V/ 200 V up to 240V |
|
|
Power consumption |
Engine |
? 830 W> (cluster with two nodes) |
|
storage block |
Controller case: ? 830 W>; Drive Enclosure: ? 550 W> |
|
|
Dimensions (H x W x D) |
Engine |
4U, 175 mm x 446 mm x 502 mm (cluster with two nodes) |
|
storage block |
2U, Controller case: 86,1 mm x 446 mm x 582 mm |
|
|
Frame |
42U, 205 cm x 57.5 cm x 118 cm |
|
|
The weight |
Engine |
Dual core cluster engine NAS: ? 43,6 kg |
|
storage block (in full configuration) |
2U, Controller case ?29,9 kg / Frame |
|
|
Working temperature |
5В°C do 40В°C |
|
|
Operating Humidity |
5%В up to 90% relative humidity |
|
В
В
| condition | new |
|---|
