Storage systemsВ Huawei OceanStor consist of arrays of different price segments. This makes them available to both large and small businesses..
Storage systems are divided into: disk arrays, tape virtual libraries, solid-state arrays and others. All of the above arrays perform a specific, individual task..
So, for example, solid-state arrays provide high data processing speed. They consist of two controllers, in connection with which there is no unified point of refusal. Disk arrays provide excellent scalability and are great for medium-sized businesses.
Storage systemsВ HuaweiВ OceanStorВ support options such as dynamic capacity provisioningВ HyperThin, automatic movement of information between different levelsВ SmartTierВ and service quality managementВ SmartQoS.

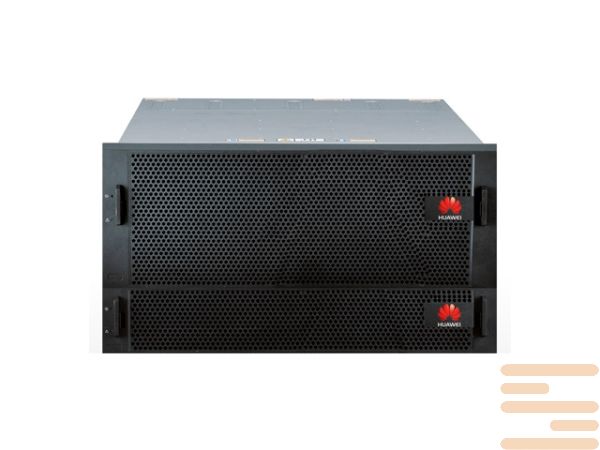

Specifications of data storage system Huawei OceanStor Series S5500T S5500T-2C32G-DC:
|
Model
|
S5500T
|
|
CPU
|
Multi-core processors
|
|
Cache Size
|
8GB/16GB/32GB
|
|
Advanced cache
|
1.2TB
|
|
Port types Front-end
|
8Gbps FC, 1Gbps iSCSI, 10Gbps iSCSI (TOE), 10Gbps FCoE
|
|
Port typesВ Back-end
|
6Gbps SAS 2.0 wide port
|
|
Number of built-in input ports / output
|
Front end: 8 x 8 Gbps Fibre Channel ports;В
Back end: 4 x SAS 2.0 wide ports
|
|
Maximum number of input modules / output
|
2
|
|
Maximum number of disk slots
|
528
|
|
Supported disc types
|
SAS, NL SAS, SATA, SSD
|
|
levels RAID
|
0,1, 3, 5, 6, 10, 50
|
|
Maximum number of shots
|
1024
|
|
Maximum amount LUN
|
4096
|
|
Mobile management
|
N/A
|
|
Functional software
|
HyperImage (copy LUN), HyperCopy (copy LUN), HyperClone (split mirror), HyperMirror (synchronous / asynchronous remote replication), HyperThin (fine selection), UltraPath (multipath propagation), DiskGuard (host-side data protection), SmartCache (dynamic data caching in TurboBoost)
|
|
Source of power
|
AC: 100 V to 127 V, or 200 V to 240 V DC: –60 V to -48 V
|
|
Energy consumption
|
2 U Controller case: ?539Tue
2 U disk enclosure: ?307Tue
4 U disk enclosure: ?527Tue
|
|
The weight
|
Controller case ? 23,9 kg
2 U Drive Enclosure SAS ? 14,9 kg
4 U Drive Enclosure SAS ? 25,2 kg
|
