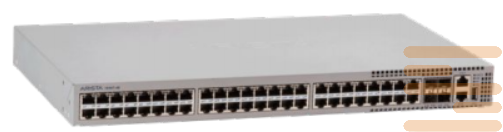

Switch Arista DCS-7010T-48-F
7995 $
Arista 7010T, 48x RJ45 (100/1000), 4 x SFP+ (1/10GbE) switch, front to rear air, 2x AC, 2xC13-C14 cords
Series switches Arista 7010T — It is a reliable and scaled solution for modern Date Centers and Corporate networks where every second of continuous work is important. Professional performance with support 1/10 Gigabit Ethernet combined here with energy efficiency and certified quality confirmed by international standards.
Basic configuration contains 48 ports 100/1000BASE-T and 4 ports SFP+ For 10GBE applins that allows you to conveniently adapt equipment under infrastructure of any complexity. Support for 2nd and Layer 3 (OSPF, BGP, VRRP) makes these devices flexible and efficient for a wide range of network solutions.
Maximum energy consumption — only 52 W> at full load, which makes the model one of the most economical in its class. This is especially true for organizations with restrictions on energy consumption and cooling. Operating system Arista EOS Provides uninterrupted work, simple administration and quick setup — Even without deep technical knowledge.
The equipment interface is intuitively understood: it is easy to master both newcomers and experienced professionals. And for professionals is available complete CLI-panel, the ability to automate through API, Modular architecture and high flexibility of deployment.
Arista 7010T — It is a switch that guarantees stability, flexibility and durability. Reliable choice for those who value quality without compromise.
Specifications of the switch Arista DCS-7010T-48-F:
| Category | Specification |
|---|---|
| Model | DCS-7010T-48-F |
| Switch Type | Layer 2/3, fixed configuration |
| Ports | 48 x 10/100/1000BASE-T (RJ-45), 4 x SFP+ (1/10GbE) uplinks |
| Throughput | 176 Gbps |
| Forwarding Rate | 132 million packets per second (Mpps) |
| Latency | 3 microseconds (RJ-45 to SFP+) |
| CPU | Multi-core x86 |
| System Memory | 4 GB DRAM |
| Flash Storage | 4 GB |
| Packet Buffer | 4 MB (dynamic allocation) |
| Management Ports | 1 x 10/100/1000BASE-T (RJ-45) |
| Console Port | 1 x RS-232 (RJ-45) |
| USB Port | 1 x USB 2.0 |
| Power Supply | 2 x AC (1+1 redundant), hot-swappable |
| Input Voltage | 100 to 240 VAC, 0.96 to 0.48 A, 50/60 Hz |
| Typical Power Draw | 52 W |
| Maximum Power Draw | 65 W |
| Cooling | 2 x hot-swappable fans (1+1 redundant), airflow: front-to-back |
| Dimensions (W x H x D) | 44.5 x 4.4 x 25.4 cm (19 x 1.75 x 10 inches) |
| Weight | 4.3 kg (9.5 lbs) |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -25°C to 70°C (-13°F to 158°F) |
| Operating Altitude | 0 to 3,000 meters (0 to 10,000 feet) |
| Relative Humidity | 5% to 95% (non-condensing) |
| MAC Address Table | Up to 84,000 entries |
| IPv4 Routes | Up to 16,000 |
| IPv6 Routes | Up to 8,000 |
| ECMP | 64-way, up to 1,000 groups |
| STP Instances | 64 MST, 510 RPVST+ |
| IGMP Groups | Up to 8,000 (with 1,000 unique groups) |
| Ingress ACLs | 4,000 |
| Egress ACLs | 1,000 |
| VLAN Translation | 4,000 entries |
| Operating System | Arista EOS (Extensible Operating System) |
| Certifications | UL/CSA 60950-1, EN 60950-1, IEC 60950-1 CB Scheme, FCC, EN55022, EN55024, CE, VCCI, BSMI, C-Tick, CCC, MSIP, EAC |
| Environmental Compliance | EU RoHS, EU WEEE |
| condition | new |
|---|
