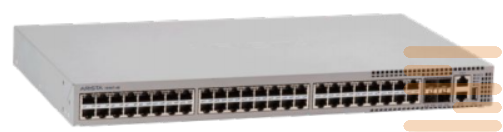

Switch Arista DCS-7020TR-48-R
11995 $
Arista 7020R switch 48xRJ45 (100/1000), 6xSFP+(1/10GbE), rear-to-front fans, 2xAC, 2xC13-C14 cords
Series switches Arista 7020TR — It is a highly productive Ethernet equipment of a new generation designed for reliable work in Date Centers, Corporate Networks and Distributed IT Infrastructures. The series is distinguished by low power consumption, compactness and high port density. Thanks to support speeds 10/100/1000BASE-T On all ports, 7020TR Ideal for server rooms where stable copper switching and scalability is important.
Basic series models offer 48 ports RJ45 and 6 ports 10GbE SFP+, which ensures flexibility when connecting both user devices and high-speed uplink connections. support Protocols L2/L3, including OSPF, BGP, VRRP and MLAG, makes these switches an excellent choice for creating reliable and fault-free networks.
Switches 7020TR certified, corporate requirements and are easy to control through CLI, API And the platform Arista CloudVision, which greatly simplifies integration into existing network infrastructure.
Even if you do not have deep technical knowledge due to stability, energy efficiency (average consumption less 100 W>) and ease of operation, Arista 7020TR — It is a smart choice for those looking for quality and durable network infrastructure. Intellectual cooling, non-ventilation modifications and high reliability make the series ideal for both large date centers and small offices.
Specifications of the switch Arista DCS-7020TR-48-R:
| Category | Specification |
|---|---|
| Model | DCS-7020TR-48-R |
| Switch Type | Layer 2/3, fixed configuration |
| Ports | 48 x 100/1000BASE-T (RJ-45), 6 x SFP+ (1/10GbE) uplinks |
| Throughput | 216 Gbps |
| Forwarding Rate | 162 million packets per second (Mpps) |
| Latency | From 3.8 microseconds |
| CPU | Multi-core x86 |
| System Memory | 8 GB DRAM |
| Flash Storage | 4 GB |
| Packet Buffer | 3 GB (dynamic allocation) |
| Management Ports | 1 x 10/100/1000BASE-T (RJ-45), 1 x RS-232 (RJ-45), 2 x USB Type-A |
| Power Supply | 2 x AC (1+1 redundant), hot-swappable |
| Input Voltage | 100 to 240 VAC, 50/60 Hz |
| Typical Power Draw | 105 W |
| Maximum Power Draw | Approximately 115 W |
| Cooling | 4 x hot-swappable fans (N+1 redundant), airflow: rear-to-front |
| Dimensions (W x H x D) | 48.3 x 4.4 x 40.6 cm (19 x 1.75 x 16 inches) |
| Weight | 7.7 kg (17.0 lbs) |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Operating Altitude | 0 to 3,000 meters (0 to 10,000 feet) |
| Relative Humidity | 5% to 95% (non-condensing) |
| MAC Address Table | Up to 256,000 entries |
| IPv4/IPv6 Routes | Up to 200,000 combined |
| VLANs Supported | 4096 |
| Operating System | Arista EOS (Extensible Operating System) |
| Certifications | UL/CSA 60950-1, EN 60950-1, IEC 60950-1 CB Scheme, FCC, EN55022, EN55024, CE, VCCI, BSMI, C-Tick, CCC, MSIP, EAC |
| Environmental Compliance | EU RoHS, EU WEEE |
| condition | new |
|---|
