Switch Arista DCS-7050CX3-32S-F
29995 $
Arista 7050X3, 32x100GbE QSFP+ & 2xSFP+ switch, front-to-rear air, 2xAC, 2xC13-C14 cords

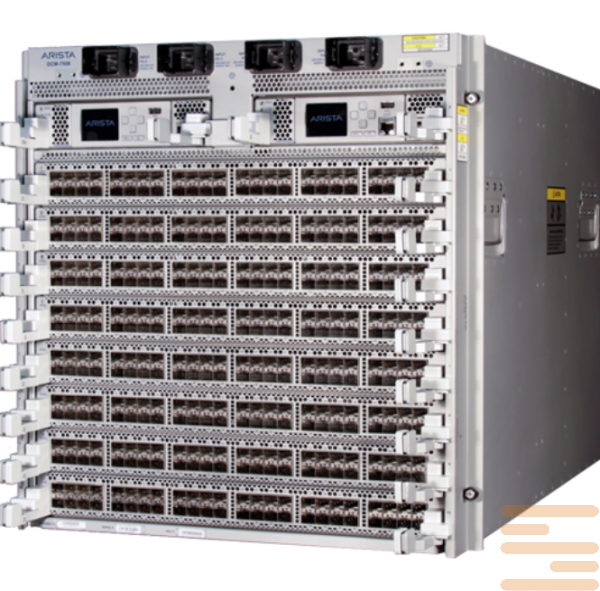

Arista 7500R Series – This is the standard of modular new generation switches created specifically for tasks where scalability, productivity and resistance to failures are critically important. This equipment is chosen by both large date centers and cloud services providers that need a basis for working with high loads, complex routing and large amounts of data.
What makes Arista 7500R a unique series? First of all - her architecture. Switches of this line offer a completely modular chassis that allows flexibly configuring the system for specific tasks. You can choose models on 4, 8 or 12 slots that gives freedom of zoom without downtime. All components including power supplies and fans are replaced without power disconnection - a real “hot substitution support".
Technically Arista 7500R Series based on a programmed chip Arista EOS (Extensible Operating System) - operating system that provides high reliability, automation and analytics at the entire network level. Support for up to 460 Tbps of total bandwidth, up to 576 100G ports, multicast optimization, VXLAN, MPLS, the routing segment - all this makes the switches ideal for both traditional and virtualized environments.
Series 7500R focused not only on engineers. Easy to install, re >Auded Settings Logic and Support API allow you to quickly integrate equipment even under limited IT teams. Simply put, if you need a reliable foundation for digital business – Arista 7500R will become the heart of your network.
Specifications of the switch Arista DCS-7050CX3-32S-F:
| Category | Specification |
|---|---|
| Ports | 32 × 100G QSFP28, 2 × 10G SFP+ |
| Maximum Port Speeds | 100G: 32 ports, 50G: 64 ports, 40G: 32 ports, 25G: 128 ports, 10G: 128 ports, 1G: 2 ports |
| Throughput | 6.4 Tbps |
| Packets per Second | 2 Bpps |
| Latency | 800 ns |
| CPU | Dual-core x86 |
| System Memory | 8 GB (optional upgrade to 16 GB) |
| Flash Storage | 8 GB (optional upgrade to 32 GB) |
| Packet Buffer | 32 MB (dynamic allocation) |
| Management Ports | 1 × 10/100/1000BASE-T RJ-45, 1 × RS-232 RJ-45 serial console, 1 × USB Type-A |
| Airflow Direction | Front-to-Back |
| Power Supplies | 2 × AC (1+1 redundant, hot-swappable) |
| Typical Power Draw | 206W |
| Maximum Power Draw | 314W |
| Input Voltage | 100–240 VAC |
| Input Current | 6.3–2.3 A |
| Input Frequency | 50/60 Hz |
| Power Connector | IEC 320-C13 |
| Efficiency | 93% (80 PLUS Platinum) |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -25°C to 70°C (-13°F to 158°F) |
| Relative Humidity | 5% to 95% non-condensing |
| Operating Altitude | 0 to 10,000 ft (0–3,000 m) |
| Dimensions (W×H×D) | 48.3 × 4.4 × 40.64 cm (19 × 1.75 × 16 inches) |
| Weight | 9.1 kg (20 lbs) |
| Minimum EOS Version | 4.20.4 |
| MAC Address Table | 288K entries |
| IPv4/IPv6 Host Routes | 168K / 104K |
| IPv4/IPv6 Route Prefixes | 360K / 192K |
| Multicast Groups | 104K |
| ECMP Groups | 128-way, 1K groups |
| STP Instances | 64 MST, 510 RPVST+ |
| IGMP Groups | 288K, with 8K unique groups |
| VLANs | 4096 |
| ACL Entries | 2000 ingress, 2000 egress |
| Priority Queues per Port | 8 |
| Jumbo Frame Support | Up to 9216 bytes |
| Compliance Standards | IEEE 802.3z, 802.1D, 802.1Q, 802.3ab, 802.1p, 802.3x, 802.3ad (LACP), 802.1w, 802.3ae, 802.1s, 802.1ab (LLDP), 802.3ba, 802.1Qbb, 802.1Qaz, 1588-2008, 802.3by |
| Certifications | UL/CSA 60950-1, EN 60950-1, IEC 60950-1, CB Scheme, FCC, EN 55022, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 300 386, VCCI, C-Tick, BSMI, CCC, MSIP, EAC |
| Environmental Compliance | RoHS Directive 2011/65/EU, WEEE Directive 2012/19/EU, EMC Directive 2004/108/EC, Low Voltage Directive 2006/95/EC |
| condition | new |
|---|
