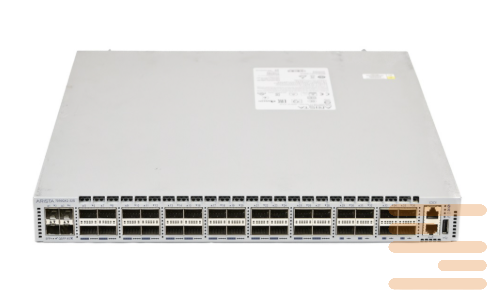

Switch Arista DCS-7050QX2-32S-R
29995 $
Arista 7050X2, 32x40GbE QSFP+ & 4xSFP+ switch, rear-to-front air, 2xAC, 2xC13-C14 cords
Switches Arista 7050X2 Series — It is a modern network solution for building high -speed infrastructure with support 10 and 40 Gigabit Ethernet. They are ideally suited for Date Centers, Corporate networks and cloud platforms where scalability, productivity and energy efficiency are important.
Devices in this series are equipped with up to 48 ports 10GbE SFP+ and 6 ports 40GbE QSFP+, which ensures flexibility in configuration and high connection density. Supports core network protocols L2 and L3 level, including BGP, OSPF, VXLAN and MLAG, which enables creating reliable and intelligent network architectures.
Thanks to an advanced operating system Arista EOS, Switching switches is possible as through CLI, and with the help of API or platform CloudVision, which is especially convenient for centralized network control. High reliability is achieved by spawning power supplies and fans, as well as the intellectual cooling system.
Even if you are not a specialist in IT, these switches will please stability, low energy consumption and ease of implementation. And for experienced administrators Arista 7050X2 offers advanced telemetry capabilities and precise synchronization using PTP-Protocol.
Specifications of the switch Arista DCS-7050QX2-32S-R:
| Category | Specification |
|---|---|
| Model | DCS-7050QX2-32S-R |
| Switch Type | Layer 2/3, fixed configuration |
| Ports | 32 x 40GbE QSFP+ ports, 4 x 10GbE SFP+ ports |
| Throughput | 2.56 Tbps |
| Forwarding Rate | 1.44 billion packets per second (Bpps) |
| Latency | As low as 550 nanoseconds (cut-through mode) |
| CPU | Quad-core x86 |
| System Memory | Up to 8 GB DRAM |
| Flash Storage | Up to 4 GB |
| Packet Buffer | 16 MB (dynamic allocation) |
| Management Ports | 1 x 10/100/1000BASE-T (RJ-45), 1 x RS-232 (RJ-45), 1 x USB Type-A |
| Power Supply | 2 x 500W AC (1+1 redundant), hot-swappable |
| Input Voltage | 100 to 240 VAC, 50/60 Hz |
| Typical Power Draw | Approximately 129 W |
| Maximum Power Draw | Approximately 283 W |
| Cooling | 4 x hot-swappable fans (N+1 redundant), airflow: rear-to-front |
| Dimensions (W x H x D) | 48.3 x 4.4 x 40.6 cm (19 x 1.75 x 16 inches) |
| Weight | 9.1 kg (20.1 lbs) |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -25°C to 70°C (-13°F to 158°F) |
| Operating Altitude | 0 to 3,000 meters (0 to 10,000 feet) |
| Relative Humidity | 5% to 90% (non-condensing) |
| MAC Address Table | Up to 288,000 entries |
| IPv4 Routes | Up to 144,000 |
| IPv4 Host Routes | Up to 208,000 |
| VLANs Supported | 4096 |
| Operating System | Arista EOS (Extensible Operating System) |
| Certifications | UL/CSA 60950-1, EN 60950-1, IEC 60950-1 CB Scheme, FCC, EN55022, EN55024, CE, VCCI, BSMI, C-Tick, CCC, MSIP, EAC |
| Environmental Compliance | EU RoHS, EU WEEE |
| condition | new |
|---|
