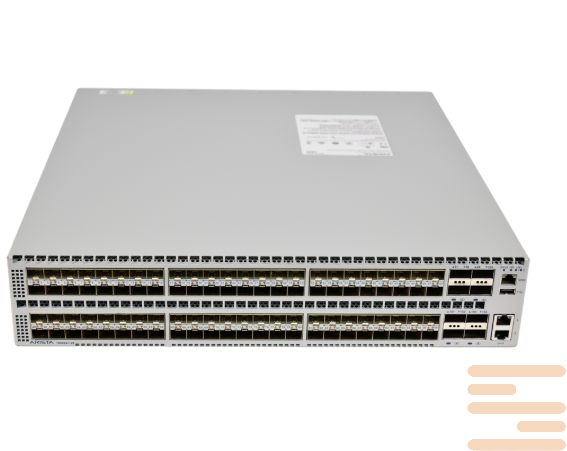

Switch Arista DCS-7050SX2-128-R
39995 $
Arista 7050X2, 96x10GbE (SFP+) & 8xQSFP+ switch, rear-to-front air, 2xAC, 2xC13-C14 cords
Switches Arista 7050X Series — It is a modern network solution for building high -speed infrastructure with support 10 and 40 Gigabit Ethernet. They are ideally suited for Date Centers, Corporate networks and cloud platforms where scalability, productivity and energy efficiency are important.
Devices in this series are equipped with up to 48 ports 10GbE SFP+ and 6 ports 40GbE QSFP+, which ensures flexibility in configuration and high connection density. Supports core network protocols L2 and L3 level, including BGP, OSPF, VXLAN and MLAG, which enables creating reliable and intelligent network architectures.
Thanks to an advanced operating system Arista EOS, Switching switches is possible as through CLI, and with the help of API or platform CloudVision, which is especially convenient for centralized network control. High reliability is achieved by spawning power supplies and fans, as well as the intellectual cooling system.
Even if you are not a specialist in IT, these switches will please stability, low energy consumption and ease of implementation. And for experienced administrators Arista 7050X2 offers advanced telemetry capabilities and precise synchronization using PTP-Protocol.
Specifications of the switch Arista DCS-7050SX2-128-R:
| Feature | Specification |
|---|---|
| Model | DCS-7050SX2-128-R |
| Ports | 96 x 10GbE SFP+ ports, 8 x 40GbE QSFP+ ports |
| Switching Capacity | 2.56 Tbps |
| Forwarding Rate | 1.44 billion packets per second (Bpps) |
| Latency | As low as 550 nanoseconds (cut-through mode) |
| MAC Address Table Size | Up to 288,000 entries |
| VLAN Support | Up to 4,096 VLANs |
| Packet Buffer | 16 MB dynamic shared buffer |
| CPU | Quad-core x86 |
| System Memory | Up to 8 GB DRAM, 4 GB Flash |
| Management Ports | 1 x 10/100/1000BASE-T (RJ-45), 1 x RS-232 (RJ-45), 1 x USB Type-A |
| Power Supply | 2 x 750W AC hot-swappable, 1+1 redundant |
| Cooling | 4 x hot-swappable fans (N+1 redundant), rear-to-front airflow |
| Dimensions (W x H x D) | 48.3 x 8.9 x 60.9 cm (19 x 3.5 x 24 inches) |
| Weight | Approximately 15.9 kg (35 lbs) |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -25°C to 70°C (-13°F to 158°F) |
| Relative Humidity | 5% to 95% non-condensing |
| Operating System | Arista EOS (Extensible Operating System) |
| Certifications | UL/CSA 60950-1, EN 60950-1, IEC 60950-1 CB Scheme, FCC, EN55022, EN55024, CE, VCCI, BSMI, C-Tick, CCC, MSIP, EAC |
| Environmental Compliance | EU RoHS, EU WEEE |
| condition | new |
|---|
