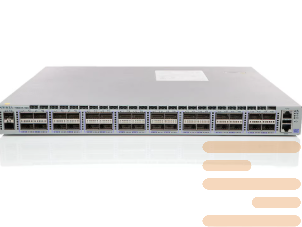

Switch Arista DCS-7060DX4-32-F
59995 $
Arista 7060X4, 32x400GbE QSFP-DD switch, front-to-rear air, 2xAC
Series switches Arista 7060X is a highly productive network solution for modern date centers and cloud infrastructures. This line is designed with focus on scalability, energy efficiency and flexibility of configurations. Models 7060X ensure maintenance of data transmission rates from 10 to 400 GbIT/that makes them relevant for a wide range of tasks - from traffic aggregation to building Spine/Leaf-architectures in high -loaded media.
Equipment architecture is based on powerful ASIC-on Broadcom chips that provide bandwidth up to 25 TbIT/with. The high density of ports per compact form factor allows you to effectively use space in racks. Switches support the interfaces QSFP+, QSFP28 and QSFP-DD, as well as compatible with optical and copper modules, which provides flexibility in the design of networks with different topology and scale.
One of the key features is integration with the operating system Arista EOS, which ensures stable operation, extended automation capabilities, and management via API and support of modern protocols including VXLAN, EVPN and segment routing. This allows you to integrate equipment into complex multi -core or virtualized environments without loss of performance or reliability.
Particular attention is paid to energy efficiency and cooling system. The use of intellectual fans and adaptive air flow distribution reduces energy consumption while maintaining stable temperature even in high traffic density conditions. Support for modular power supplies with the ability to be redundant and hot-swappable minimizes the risk of downtime and increases system fault tolerance.
Certificates of the international model, including CE, FCC and RoHS, confirm the compliance of equipment with strict quality and safety standards. Thanks to high performance, flexible scalability and thoughtful architecture Arista 7060X Provides a stable network infrastructure ready for the tasks of the future - from processing large volumes of data to work in constant load conditions and high requirements for the speed of transmission of information.
Specifications of the switch DCS-7060DX4-32-F:
| Specification | Details |
|---|---|
| Model | Arista DCS-7060DX4-32-F |
| Series | Arista 7060X4 Series |
| Form Factor | 1RU (Rack Unit) |
| Switching Capacity | Up to 25.6 Tbps |
| Forwarding Rate | Up to 8 Bpps |
| Latency | As low as 700 ns (cut-through mode) |
| Ports | 32 x 400GbE QSFP-DD |
| Breakout Support | Up to 128 x 100GbE or 64 x 200GbE using breakout cables |
| Management Ports | 1 x RJ-45 10/100/1000 Management, 1 x USB Type-A, 1 x RS-232 Console |
| Airflow Direction | Front-to-Back (denoted by "-F" in the model number) |
| Cooling | 5 x Hot-swappable fans (FAN-7001DH-F) |
| Power Supplies | 2 x Hot-swappable 1600W AC (PWR-1611-AC-RED) |
| Packet Buffer Memory | 64 MB (Dynamic Buffer Allocation) |
| MAC Address Table | Up to 72,000 entries |
| IPv4 Host Entries | 16K |
| IPv4 LPM Routes | Up to 640K (using Unified Forwarding Table) |
| Multicast Routes | 16K IPv4 Multicast (S,G) |
| VLANs Supported | 4096 |
| System Memory (DRAM) | 8 GB |
| Flash Storage | 8 GB |
| Operating System | Arista EOS (Extensible Operating System) |
| Supported Features | Layer 2/3 switching, VXLAN, MLAG, EVPN, BGP, OSPF, VRF, Zero Touch Provisioning, eAPI, OpenFlow, OpenConfig, REST API |
| Compliance & Certifications | RoHS, CE, FCC, UL, EN55032, EN60950-1, VCCI |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Operating Humidity | 5% to 95% (non-condensing) |
| Dimensions (HxWxD) | 1.73 x 17.3 x 26.4 inches (44 x 440 x 671 mm) |
| Weight | Approximately 21 lbs (9.5 kg) |
| condition | new |
|---|
