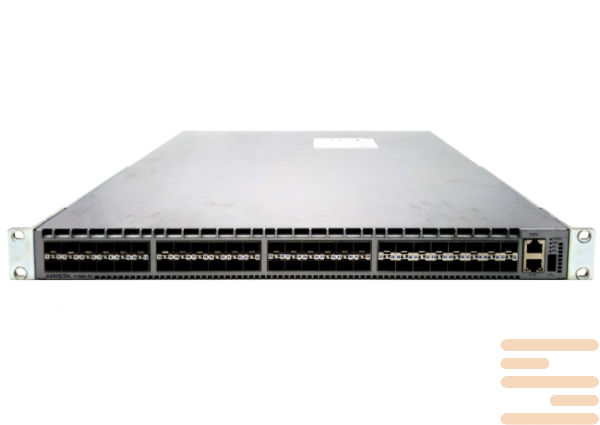

Switch Arista DCS-7150S-52-CL-R
24995 $
Arista 7150S, 52x10GbE (SFP+) switch with clock, rear-to-front air, 2xAC, 2xC13-C14 cords
Switches Arista 7150 Series — These are the advanced solutions for creating high-speed and reliable networks in Date Centers, Corporate Networks and Cloud Infrastructures. These devices support standards 10 Gigabit Ethernet (10GbE) and 40 Gigabit Ethernet (40GbE), which provides high bandwidth up to several terabits per second.
The technical features of the 7150 series include the use of specialized ASIC-chips with technology support Cut-Through Switching, which reduces packet transmission latency to a record 650 nanoseconds. Such minimal delay is especially important for financial institutions, data processing centers and other businesses with critical response time requirements.
Switches come up to 48 ports 10GbE SFP+, which allow using optical or copper modules for connection flexibility, as well as multiple ports 40GbE QSFP+, which enables traffic aggregation and ensures network scalability. Supports channel aggregation (LACP) and different switching protocols, including VLAN, STP, RSTP and MSTP, which enables building reliable and secure network topologies.
Built -in support Quality of Service (QoS) Allows you to prioritize important traffic by ensuring stable work of critical applications. Energy consumption is optimized with modern technologies that reduces the operating costs of equipment.
Switches management is implemented on the basis of the operating system Arista EOS, which supports configuration automation via API, scripts and integration with network management systems. This makes work with the equipment convenient for both experienced administrators and users with basic knowledge.
Arista 7150 devices have certificates of compliance with international quality and safety standards, which confirms their reliability and long service life.
Specifications of the switch Arista DCS-7150S-52-CL-R:
| Parameter | Description |
|---|---|
| Model | Arista DCS-7150S-52-CL-R |
| Series | Arista 7150S Series |
| Ports | 52 × SFP+ ports (1/10GbE) |
| Forwarding Performance | 780 million packets per second (Mpps) |
| Switching Capacity | 1.04 Terabits per second (Tbps) |
| Latency | From 380 nanoseconds (ns) |
| Buffer Memory | 9.5 MB (dynamic allocation) |
| CPU | Dual-Core x86 processor |
| Memory (RAM) | 4 GB DRAM |
| Flash Storage | 2 GB |
| Precision Time Protocol (PTP) | IEEE 1588-2008 Precision Time Protocol (Boundary Clock & Transparent Clock) |
| Management Ports | 1 × 10/100/1000 Management (RJ-45), 1 × RS-232 serial (RJ-45), 1 × USB |
| Airflow Direction | Rear-to-Front (indicated by “-R” suffix) |
| Cooling | 4 hot-swappable fans (N+1 redundant) |
| Power Supplies | Dual hot-swappable AC power supplies (1+1 redundant, 460W each) |
| Typical Power Consumption | ~190 Watts |
| Maximum Power Consumption | Up to 450 Watts |
| Form Factor | 1U rack-mountable |
| Dimensions (W × H × D) | 17.5" × 1.75" × 16.0" (44.5 cm × 4.4 cm × 40.6 cm) |
| Weight | Approximately 18 lbs (8.2 kg) |
| Mounting | Rack ears included |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -25°C to 70°C (-13°F to 158°F) |
| Humidity | 5% to 95% (non-condensing) |
| Operating System | Arista EOS (Extensible Operating System), EOS version 4.10.0 or later required |
| Lifecycle Status | End of Sale: December 1, 2021End of Support: December 1, 2024 |
| Compliance | RoHS-6 compliant, NEBS Level 3 (optional), FCC, CE, UL, ICES, VCCI, BSMI |
| condition | new |
|---|
