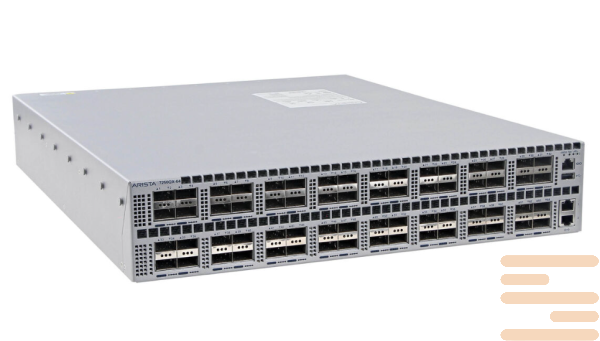

Switch Arista DCS-7260QX-64-R
39995 $
Arista 7260X, 64x40GbE QSFP+ & 2xSFP+ switch, rear-to-front air, 2xAC, 2xC13-C14 cords
Series switches Arista 7250X — These are highly productive network devices that are designed for corporate date centers and telecommunications networks with high speed and reliability requirements. The series maintains speeds of 10 and 40 GbIT/that provides flexibility in building infrastructure and ease of scaling.
Model row 7250X equipped with ports 10GbE SFP+ and 40GbE QSFP+, offering the optimal combination of density and bandwidth. Each switch supports up to 48 10GBE ports or 12 40GBE ports, and also allows you to use Breakoout configurations to increase the number of available interfaces. The total bandwidth reaches 1,28 TbIT/with, And the performance is up to 952 millions of packages per second, which allows effortless handling of intensive traffic.
Switter architecture is based on advanced ASIC-on Arista chips, which provide low latency and high energy efficiency. Using Deep Buffering technology allows you to effectively control peak loads by reducing the likelihood of package loss.
Operating system Arista EOS offers a wide range of capabilities for automation and network management. Support for protocols VXLAN, EVPN, MLAG, BGP, OSPF and VRF Provides flexibility in the construction of complex network topologies, and integration with automation systems (Ansible, Puppet, Chef) allows you to easily implement Devops-Approaches.
Switches have a reliable cooling system with frontal air flow, which provides optimal operating conditions in standard cabinets. Energy -efficient design reduces energy consumption on the port, which is especially important when scaling networks.
In general, Arista 7250X — It is a reliable and productive solution that can ensure stable operation of a network with high port density and configuration flexibility that is ideal for modern infrastructures of any scale.
Specifications of the switch Arista DCS-7260QX-64-R:
| Feature | Specification |
|---|---|
| Product Name | Arista DCS-7260QX-64-R |
| Manufacturer | Arista Networks |
| Device Type | Fixed Configuration Switch |
| Switch Class | Data Center / Enterprise |
| Ports | 64 x 40GbE QSFP+ ports |
| Additional Ports | 4 x 100GbE QSFP28 ports (can be split into 4x25GbE each) |
| Switching Capacity | 6.4 Tbps |
| Forwarding Rate | 4.76 Bpps (billion packets per second) |
| Latency | Sub-microsecond (< 600 ns) |
| Buffer Size | 32 MB shared packet buffer |
| Layer 2 Features | VLANs, Spanning Tree (STP, RSTP, MSTP), Link Aggregation (LACP) |
| Layer 3 Features | IPv4/IPv6 routing, OSPF, BGP, VRF, ECMP |
| Management Interfaces | 1 x 10/100/1000Base-T out-of-band management port |
| Console Interface | RJ-45 Console port |
| Network Operating System | Arista EOS (Extensible Operating System) |
| Power Supplies | Dual redundant hot-swappable power supplies |
| Power Consumption | Typical: ~260 Watts |
| Cooling | Rear-to-front cooling, redundant fans |
| Dimensions (W x D x H) | 17.3" x 20.5" x 1.75" (44 cm x 52 cm x 4.5 cm) (1 RU) |
| Weight | Approx. 15.4 kg (34 lbs) |
| MTBF | > 500,000 hours |
| Compliance & Certifications | RoHS, CE, FCC, UL, EN55032, EN55024 |
| Warranty | Limited lifetime warranty (varies by region) |
| Use Cases | High-performance data center, cloud networking, high-density 40GbE and 100GbE aggregation |
| condition | new |
|---|
