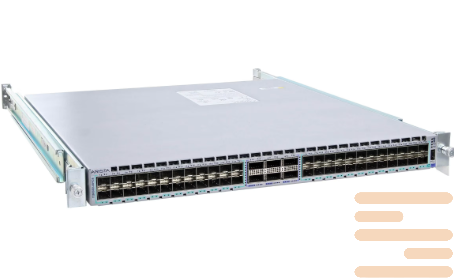

Switch Arista DCS-7280SR-48C6-F
27995 $
Arista 7280R, 48x10GbE (SFP+) & 6x100GbE QSFP switch, front to rear air, 2x AC and 2xC13-C14 cords
A series of switches Arista 7280R — It is a universal leaf level platform for modern date centers that provides high performance, scalability and flexibility in the construction of a network infrastructure. These devices are designed to maintain different data speeds — from 1GBE to 100gbe that allows you to optimally adapt the network to current and future tasks.
Arista 7280R — It is a multi -service platform with a wide set of ports, including with 1/10/25/40/50/100 Gigabit Ethernet. The series switches are equipped with modern ASIC-with low-latency and high-bandwidth chips, providing up to 19,2 TbIT/with total bandwidth and processing over 14 billions of packages per second. This productivity allows you to build scaled networks with minimal delay and high reliability.
Devices support technologies VXLAN, EVPN, MLAG, BGP, OSPF, IS-IS, MPLS, as well as numerous features for network segmentation and safety, including Role-Based Access Control (RBAC) and MACsec with encryption. Operating system Arista EOS Provides advanced automation and integration with Devops tools, supports telemetry in real time and intellectual performance monitoring.
Switches have an effective cooling system with a front flow of air, which facilitates their integration into racks with optimal ventilation. Energy efficiency and reliability do Arista 7280R The ideal solution for large corporate date centers and cloud providers.
Series 7280R Allows you to create a single high -yielding space for low -delayed traffic, vertical and horizontal scaled, critical for modern applications such as cloud calculations, artificial intelligence and large data.
Specifications of the switch Arista DCS-7280SR-48C6-F:
| Category | Specification |
|---|---|
| Model | Arista DCS-7280SR-48C6-F |
| Series | Arista 7280R Series |
| Form Factor | 1RU Rack Mount |
| Airflow Direction | Front-to-Back (F suffix) |
| Dimensions (W x H x D) | 19.0 x 1.75 x 16.0 inches (48.3 x 4.4 x 40.6 cm) |
| Weight | 22.0 lbs (10.0 kg) |
| Data Ports | 48 x 10GbE SFP+ |
| Uplink Ports | 6 x 100GbE QSFP |
| Management Ports | 1 x 100/1000 RJ-45 Mgmt, 1 x RJ-45 Console, 2 x USB 2.0 |
| Throughput | 2.16 Tbps |
| Packets Per Second | 720 Mpps |
| Latency | 3.8 microseconds |
| MAC Addresses | Up to 768,000 |
| IPv4 Routes (LPM) | Up to 1.3 million |
| IPv6 Routes (LPM) | Up to 1 million |
| Buffer Size | 4 GB |
| Jumbo Frame Support | Up to 9216 bytes |
| CPU | Quad-core x86 |
| System Memory (RAM) | 8 GB standard (upgradable to 32 GB) |
| Flash Storage | 4 GB |
| Operating System | Arista EOS (Extensible Operating System) |
| Routing Protocols | OSPF, IS-IS, BGP, MP-BGP, RIP, PIM, IGMP, VRRP, MSDP, ECMP, PBR, BFD, uRPF, VARP |
| Advanced Features | VXLAN, EVPN, MLAG, ZTP, sFlow, LANZ, DANZ, PTP, QoS, ACLs, CloudVision integration |
| Supported Standards | IEEE 802.1D/w/s/Q/p/x/ab/ad/ae/az/bb/ba/by, 802.3z/ab, IEEE 1588-2008 (PTP) |
| Power Supply | Dual redundant, hot-swappable (model-dependent, not included in base model) |
| Cooling | Front-to-Back airflow, N+1 redundant fans (hot-swappable) |
| Typical Power Consumption | ~300W (varies by configuration and optics used) |
| condition | new |
|---|
