Switch Arista DCS-7304XT-BND-F
54995 $

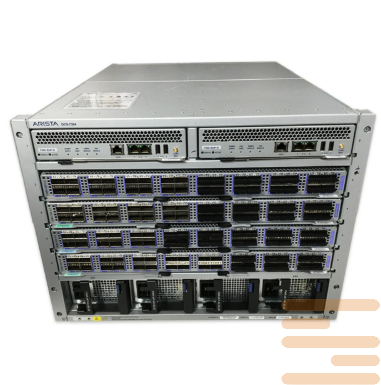

Arista 7304X chassis bundle. Includes 7304 chassis, 2x3KW Titanium PS, 4xFabrics/fans, 1x Supervisor (F-R)
Series switches Arista 7300X — It is high-performance modular Ethernet devices designed to build scalable and reliable corporate-level networks and a datal centers. Thanks to modern architecture and advanced functionality, these switches are ideal for both telecommunications operators and large enterprises seeking to provide high data transfer speeds and low latency.
The main advantage of the series 7300X There is a modular design that allows you to easily build a capacity and adapt to the variable requirements of the network. Basic configuration includes chassis with different number of slots for linear card modules, power supply blocks and cooling systems that provide stable operation even under intense operating conditions.
Specifications Arista 7300X They are striking: Support for bandwidth up to 15,2 TbIT/s, the ability to install up to 32 100GbE ports, and scalability up to several hundred gigabit interfaces. Switches support modern routing and switching protocols including BGP, OSPF, MPLS and VXLAN, which allows integration into complex multiprotocol networks.
Another important feature — Intellectual traffic control and automation implemented using a software platform EOS (Extensible Operating System). EOS Provides a convenient interface for administration, diagnostics and scaling of a network by reducing operating costs and increasing reliability.
For users with different levels of preparation Arista 7300X offers ease of integration and configuration "out of the box"». Support IEEE standards, security certification and compatibility with modern network equipment make these switches the optimal choice for projects of varying complexity — from the Date Centers to the main networks.
Specifications of the switch Arista DCS-7304XT-BND-F:
| Feature | Details |
|---|---|
| Model | Arista DCS-7304XT-BND-F |
| Chassis | 7304 Series, 4-slot modular chassis |
| Airflow Direction | Front-to-rear (F-R) |
| Power Supplies | 2 x 3000W Titanium AC (PWR-3KT-AC) |
| Fabric Modules | 4 x Fabric-X modules with integrated fans |
| Supervisor Module | 1 x Supervisor module |
| Switching Capacity | Up to 10 Tbps |
| Line Card Compatibility | Supports various line cards including DCS-7300X-32Q-LC, DCS-7300X-64S-LC, DCS-7300X-64T-LC |
| Management Interfaces | Console, USB, Ethernet management ports |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -25°C to 70°C (-13°F to 158°F) |
| Relative Humidity | 5% to 95% non-condensing |
| Dimensions (H x W x D) | 8 RU (352 mm) x 441 mm x 603 mm (13.86" x 17.36" x 23.74") |
| Weight | Approximately 35.3 kg (78 lbs) without line cards |
| Operating System | Arista EOS (Extensible Operating System) |
| Virtualization Support | VXLAN, OpenFlow, DirectFlow, eAPI |
| condition | new |
|---|
