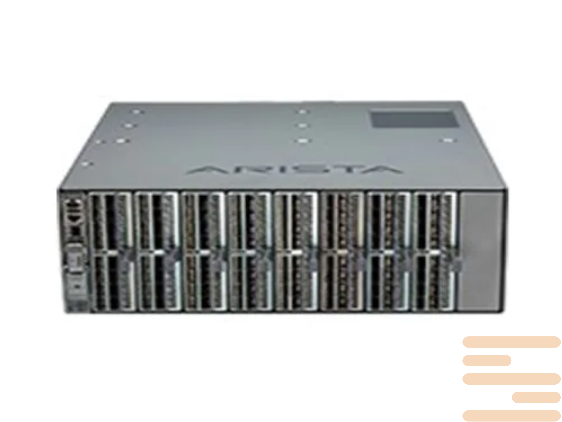

Switch Arista DCS-7308X-BND2-DC-R
100995 $
Arista 7308X chassis bundle. Includes 7308 chassis, 4x3K DC PS, 4 Fabrics/fans, 1x Supervisor (R-F)
Arista 7300X Series – These are new generation switches designed for high-performance dates, operator networks and corporate infrastructure where stability, scalability and outstanding delay are critical. These devices provide a capacity to 150 TbIT/s and are ideal for implementing spine-leaf architectures.
The series includes models 7304X, 7308X and 7316X with the ability to install up to 16 linear cards, each of which provides support 10G/25G/40G/100G Ethernet. This allows flexibly adaptation to the needs of any organization, regardless of scale. Throughput of each line card reaches 6,4 TbIT/s, and the redundant architecture provides fault tolerance level carrier-grade.
An important advantage is modularity: You can start with a base configuration and scalable the system without downtime. Switches support IEEE standards including VXLAN, EVPN and MPLS, which makes them a universal solution for both traditional and cloud networks.
At the base Arista EOS (Extensible Operating System) - reliable and flexible operating system based on Linux, with the possibility of integration through API. It gives IT professionals full control, automation and rapid response to changes in the network.
Cooling is implemented through modular fans available in Front-To-back and Back-To-Front, which provides effective ventilation depending on the configuration of the racks. The devices meet certification requirements NEBS, have a supply power supply and guarantee continuous work 24/7.
Specifications of the switch Arista DCS-7308X-BND2-DC-R:
| Specification | Details |
|---|---|
| Model | Arista DCS-7308X-BND2-DC-R |
| Chassis Type | Modular chassis, 8-slot |
| Form Factor | 13RU (Rack Units) |
| Dimensions (H x W x D) | 22.53 in x 17.36 in x 23.74 in (572 mm x 441 mm x 603 mm) |
| Weight (Chassis Only) | 110 lbs (49.9 kg) |
| Weight (Fully Loaded) | 292 lbs (132.5 kg) |
| Power Supply | 4x 3000W DC Power Supplies |
| Airflow Direction | Rear-to-Front (Reversed airflow) |
| Line Card Slots | 8 modular slots |
| Supervisor Slots | 2 redundant slots |
| Fabric Module Slots | 4 midplane-integrated |
| Fan Modules | 16 hot-swappable high-efficiency fans |
| Switching Capacity | Up to 51.2 Tbps |
| Forwarding Rate | Up to 32 billion packets per second (Bpps) |
| Latency | Sub-microsecond |
| Packet Buffer | 32 MB per port group |
| Typical Power Consumption | ~4005W (depends on line cards and traffic) |
| Max Power Consumption | ~6490W (with 8x 7300X-64T-LC line cards) |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Relative Humidity | 5% to 95% (non-condensing) |
| Management Interfaces | 1x RJ45 10/100/1000 Ethernet, USB, RS-232 serial console |
| Layer 2 Features | STP, MSTP, VLANs, MLAG, Link Aggregation, etc. |
| Layer 3 Features | Static Routing, OSPF, BGP, VRFs, Multicast (PIM, IGMP) |
| ECMP Support | Up to 128-way Equal Cost Multi-Path routing |
| Zero Touch Provisioning | Supported |
| Telemetry & Monitoring | Real-time telemetry, environmental sensors, streaming analytics |
| Automation & APIs | EOS API, eAPI, JSON-RPC, CloudVision support |
| RoHS & Compliance | RoHS Compliant, FCC Class A, UL/IEC 60950-1 |
| EOS (Arista OS) | Arista EOS (Extensible Operating System) |
| Lifecycle Status | End-of-Sale as of July 19, 2018 – Migration to DCS-7308X3 recommended |
| condition | new |
|---|
