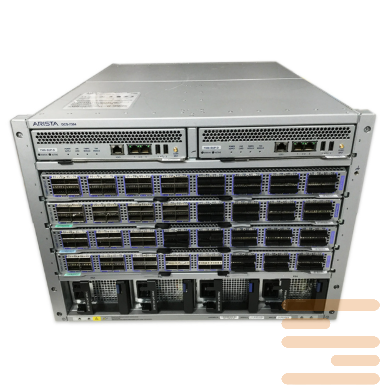

Switch Arista DCS-7324X-BND-D-F
78995 $
Arista 7324X chassis bundle. Includes 7304 chassis, 2x3000PS, 4x 7320X Fabrics/ fans, 1xSupervisor & SSD (F-R)
Series switches Arista 7300X — It is high-performance modular Ethernet devices designed to build scalable and reliable corporate-level networks and a datal centers. Thanks to modern architecture and advanced functionality, these switches are ideal for both telecommunications operators and large enterprises seeking to provide high data transfer speeds and low latency.
The main advantage of the series 7300X There is a modular design that allows you to easily build a capacity and adapt to the variable requirements of the network. Basic configuration includes chassis with different number of slots for linear card modules, power supply blocks and cooling systems that provide stable operation even under intense operating conditions.
Specifications Arista 7300X They are striking: Support for bandwidth up to 15,2 TbIT/s, the ability to install up to 32 100GbE ports, and scalability up to several hundred gigabit interfaces. Switches support modern routing and switching protocols including BGP, OSPF, MPLS and VXLAN, which allows integration into complex multiprotocol networks.
Another important feature — Intellectual traffic control and automation implemented using a software platform EOS (Extensible Operating System). EOS Provides a convenient interface for administration, diagnostics and scaling of a network by reducing operating costs and increasing reliability.
For users with different levels of preparation Arista 7300X offers ease of integration and configuration "out of the box"». Support IEEE standards, security certification and compatibility with modern network equipment make these switches the optimal choice for projects of varying complexity — from the Date Centers to the main networks.
Specifications of the switch Arista DCS-7324X-BND-D-F:
| Parameter | Specification |
|---|---|
| Model | Arista DCS-7324X-BND-D-F |
| Chassis | 7304 modular chassis (4-slot) |
| Form Factor | 8 RU (Rack Units) |
| Dimensions (H × W × D) | 17.36 in × 23.74 in × 22.53 in (44.09 cm × 60.3 cm × 57.23 cm) |
| Weight (Fully Loaded) | 196 lbs (89 kg) |
| Supervisor Module | 1 × Supervisor with integrated SSD (Front-to-Rear airflow) |
| Fabric Modules | 4 × 7320X Fabric modules with integrated fans |
| Power Supplies | 2 × 3kW AC Power Supplies (hot-swappable, N+1 redundancy) |
| Airflow Direction | Front-to-Rear |
| Switching Capacity | Up to 25 Tbps |
| Throughput | Up to 19.2 billion packets per second (Bpps) |
| Max 10G Ports | Up to 512 (depending on line cards) |
| Max 25G Ports | Up to 512 (depending on line cards) |
| Max 40G Ports | Up to 128 (depending on line cards) |
| Max 100G Ports | Up to 128 (depending on line cards) |
| Latency | <2 microseconds |
| VLAN Support | Up to 4096 VLANs |
| MAC Addresses | Up to 288K |
| IPv4 Routes | Up to 208K |
| IPv6 Routes | Up to 8K |
| System Memory | 16 GB |
| Flash Storage | 4 GB |
| Management Ports | 2 × RJ-45 (Gigabit Ethernet), 1 × RJ-45 (RS-232), 2 × USB 2.0 ports |
| Power Consumption | Typical: 65W, Max: 80W |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -25°C to 70°C (-13°F to 158°F) |
| Operating Humidity | 5% to 95% (non-condensing) |
| Storage Humidity | 5% to 95% (non-condensing) |
| Operating Altitude | Up to 10,000 ft (3,000 meters) |
| Routing Protocols | OSPF, OSPFv3, IS-IS, RIP-2, BGP, MP-BGP, VRRP, PIM-SM, PIM-SSM, MSDP, ECMP, PBR, BFD |
| Management Protocols | SNMP v1/v2/v3, RMON, Telnet, SSH-2, CLI |
| Authentication | RADIUS, TACACS+ |
| Advanced Features | VLAN, QoS, ACLs, sFlow, STP/RSTP/MSTP, DHCP snooping, Jumbo Frames, LACP, VXLAN, Zero Touch Provisioning, Syslog, environmental monitoring |
| Certifications | UL, TUV, EN 60950, IEC 60950, CSA 22.2 No. 60950 |
| EMC Compliance | FCC Part 15 Class A, ICES-003 Class A, VCCI Class A |
| Environmental Compliance | RoHS compliant |
| End-of-Sale Announcement | April 2, 2021 |
| Last Day to Order | October 2, 2021 |
| End of Software Support | October 2, 2024 |
| End of Hardware Support (RMA) | October 2, 2026 |
| condition | new |
|---|
