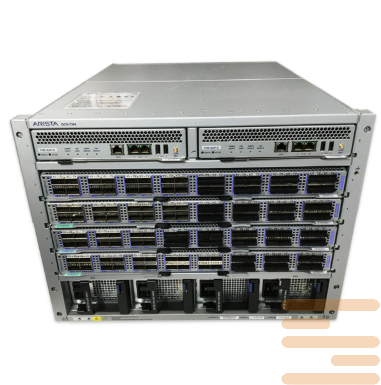

Switch Arista DCS-7328X-BND-D-F
120995 $
Arista 7328X chassis bundle. Includes 7308 chassis, 4x3000PS, 4x 7320X Fabrics/fans, 1x Supervisor & SSD (F-R)
Series switches Arista 7300X — It is high-performance modular Ethernet devices designed to build scalable and reliable corporate-level networks and a datal centers. Thanks to modern architecture and advanced functionality, these switches are ideal for both telecommunications operators and large enterprises seeking to provide high data transfer speeds and low latency.
The main advantage of the series 7300X There is a modular design that allows you to easily build a capacity and adapt to the variable requirements of the network. Basic configuration includes chassis with different number of slots for linear card modules, power supply blocks and cooling systems that provide stable operation even under intense operating conditions.
Specifications Arista 7300X They are striking: Support for bandwidth up to 15,2 TbIT/s, the ability to install up to 32 100GbE ports, and scalability up to several hundred gigabit interfaces. Switches support modern routing and switching protocols including BGP, OSPF, MPLS and VXLAN, which allows integration into complex multiprotocol networks.
Another important feature — Intellectual traffic control and automation implemented using a software platform EOS (Extensible Operating System). EOS Provides a convenient interface for administration, diagnostics and scaling of a network by reducing operating costs and increasing reliability.
For users with different levels of preparation Arista 7300X offers ease of integration and configuration "out of the box"». Support IEEE standards, security certification and compatibility with modern network equipment make these switches the optimal choice for projects of varying complexity — from the Date Centers to the main networks.
Specifications of the switch Arista DCS-7328X-BND-D-F:
| Parameter | Specification |
|---|---|
| Model | Arista DCS-7328X-BND-D-F |
| Chassis | 7308 modular chassis (8-slot) |
| Form Factor | 13 RU |
| Dimensions (H × W × D) | 22.53 in × 17.36 in × 23.74 in (57.23 cm × 44.09 cm × 60.3 cm) |
| Weight (Fully Loaded) | Up to 415 lbs (188 kg) |
| Supervisor Module | 1 × Supervisor module with integrated SSD (Front-to-Rear airflow) |
| Fabric Modules | 4 × 7328X Fabric modules with integrated fans |
| Line Cards Supported | Up to 8 modular line cards (10G/25G/40G/50G/100G Ethernet depending on model) |
| Maximum 10G Ports | Up to 512 (depending on line cards) |
| Maximum 25G Ports | Up to 512 (depending on line cards) |
| Maximum 40G Ports | Up to 128 (depending on line cards) |
| Maximum 50G Ports | Up to 128 (depending on line cards) |
| Maximum 100G Ports | Up to 128 (depending on line cards) |
| System Throughput | Up to 50 Tbps |
| Packet Throughput | Up to 38.4 Bpps |
| Latency | <2 microseconds |
| Switching Capacity | Up to 50 Tbps (depending on line cards and configuration) |
| Airflow Direction | Front-to-Rear |
| Power Supplies | 4 × 3kW AC Power Supplies (hot-swappable, N+1 redundancy) |
| Power Input | 200–240V AC |
| Maximum Power Consumption | Up to 9600W (fully loaded) |
| Cooling | Fan trays integrated with fabric modules (N+1 redundancy) |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -25°C to 70°C (-13°F to 158°F) |
| Operating Humidity | 5% to 95% (non-condensing) |
| Storage Humidity | 5% to 95% (non-condensing) |
| Altitude | Up to 10,000 ft (3,000 m) |
| MAC Address Table Size | Up to 288K |
| IPv4 Route Table Size | Up to 208K |
| IPv6 Route Table Size | Up to 8K |
| VLAN Support | Up to 4096 VLANs |
| Advanced Features | VXLAN, EVPN, MLAG, ECMP, QoS, sFlow, Jumbo Frames, ACLs, Zero Touch Provisioning |
| Routing Protocols | OSPF, OSPFv3, IS-IS, RIP, BGP, MP-BGP, PIM-SM/SSM, MSDP, BFD |
| Management Interfaces | 2 × 10/100/1000 RJ45, 1 × RS-232 Console, 1 × USB |
| Management Protocols | SNMP v1/v2/v3, Syslog, Telnet, SSH, JSON-RPC, gRPC, REST APIs, CLI |
| Security and Access Control | RADIUS, TACACS+, Control Plane Policing, DHCP snooping, Port Security |
| Operating System | Arista EOS |
| Certifications | UL, CE, FCC Class A, RoHS |
| End-of-Sale Date | April 2, 2021 |
| Last Day to Order | October 2, 2021 |
| End of Software Support | October 2, 2024 |
| End of Hardware Support (RMA) | October 2, 2026 |
| condition | new |
|---|
