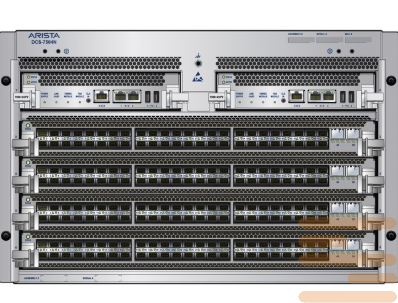

Switch Arista DCS-7504R-BND-D
142995 $
Arista 7504R Chassis bundle. Includes 7504N chassis, 4x3kW PS, 6xFM-R, 1xSup2-D
Arista 7500R Series – This is the standard of modular new generation switches created specifically for tasks where scalability, productivity and resistance to failures are critically important. This equipment is chosen by both large date centers and cloud services providers that need a basis for working with high loads, complex routing and large amounts of data.
What makes Arista 7500R a unique series? First of all - her architecture. Switches of this line offer a completely modular chassis that allows flexibly configuring the system for specific tasks. You can choose models on 4, 8 or 12 slots that gives freedom of zoom without downtime. All components including power supplies and fans are replaced without power disconnection - a real “hot substitution support".
Technically Arista 7500R Series based on a programmed chip Arista EOS (Extensible Operating System) - operating system that provides high reliability, automation and analytics at the entire network level. Support for up to 460 Tbps of total bandwidth, up to 576 100G ports, multicast optimization, VXLAN, MPLS, the routing segment - all this makes the switches ideal for both traditional and virtualized environments.
Series 7500R focused not only on engineers. Easy to install, re >Auded Settings Logic and Support API allow you to quickly integrate equipment even under limited IT teams. Simply put, if you need a reliable foundation for digital business – Arista 7500R will become the heart of your network.
Specifications of the switch Arista DCS-7504R-BND-D:
| Component | Details |
|---|---|
| Chassis Model | Arista 7504N |
| Supervisor Module | 1 × DCS-7500-SUP2-D Supervisor Module |
| Line Card Slots | 4 (line cards not included) |
| Fabric Module Slots | 6 (6 × DCS-7504R-FM modules included) |
| Power Supplies | 4 × 3kW AC power supplies |
| Cooling | Integrated fan modules with N+1 redundancy |
| Airflow Direction | Front-to-Rear |
| Maximum Throughput | Up to 150 Tbps |
| Forwarding Rate | Up to 7.2 billion packets per second (Bpps) |
| VLAN Support | Up to 4096 VLANs |
| MAC Address Table | Up to 288K addresses |
| IPv4 Route Table | Up to 208K |
| IPv6 Route Table | Up to 64K |
| Advanced Features | VXLAN, EVPN, MLAG, ECMP, QoS, sFlow, ACLs, Zero Touch Provisioning |
| Routing Protocols | OSPF, OSPFv3, IS-IS, RIP, BGP, MP-BGP, PIM-SM/SSM, MSDP, BFD |
| Management Interfaces | 2 × 10/100/1000 RJ45, 1 × RS-232 Console, 1 × USB |
| Management Protocols | SNMP v1/v2/v3, Syslog, Telnet, SSH, JSON-RPC, gRPC, REST APIs, CLI |
| Security Features | RADIUS, TACACS+, Control Plane Policing, DHCP Snooping, Port Security |
| Operating System | Arista EOS |
| Dimensions (H × W × D) | 12.3 in × 19 in × 31.3 in (31.2 cm × 48.3 cm × 79.5 cm) |
| Weight | Approximately 76.5 lbs (34.7 kg) |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -25°C to 70°C (-13°F to 158°F) |
| Operating Humidity | 5% to 95% (non-condensing) |
| Altitude | Up to 10,000 ft (3,000 m) |
| Certifications | UL, CE, FCC Class A, RoHS |
| condition | new |
|---|
