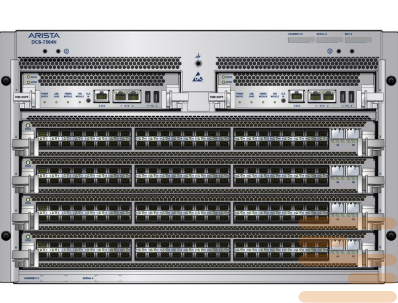

Switch Arista DCS-7504R-BND-FLX
204990 $
Arista 7504R-L3M Chassis bundle. Includes 7504N chassis, 4x3kW PS, 6xFM-R, 1xSup2, Over 256K Routes, MPLS and VXLAN
Arista 7500R Series – This is the standard of modular new generation switches created specifically for tasks where scalability, productivity and resistance to failures are critically important. This equipment is chosen by both large date centers and cloud services providers that need a basis for working with high loads, complex routing and large amounts of data.
What makes Arista 7500R a unique series? First of all - her architecture. Switches of this line offer a completely modular chassis that allows flexibly configuring the system for specific tasks. You can choose models on 4, 8 or 12 slots that gives freedom of zoom without downtime. All components including power supplies and fans are replaced without power disconnection - a real “hot substitution support".
Technically Arista 7500R Series based on a programmed chip Arista EOS (Extensible Operating System) - operating system that provides high reliability, automation and analytics at the entire network level. Support for up to 460 Tbps of total bandwidth, up to 576 100G ports, multicast optimization, VXLAN, MPLS, the routing segment - all this makes the switches ideal for both traditional and virtualized environments.
Series 7500R focused not only on engineers. Easy to install, re >Auded Settings Logic and Support API allow you to quickly integrate equipment even under limited IT teams. Simply put, if you need a reliable foundation for digital business – Arista 7500R will become the heart of your network.
Specifications of the switch Arista DCS-7504R-BND-FLX:
| Component | Description |
|---|---|
| Chassis Model | Arista 7504N Modular Chassis |
| Supervisor Module | 1 × DCS-7500-SUP2 (Supervisor 2) |
| Fabric Modules | 6 × DCS-7504R-FM (Fabric Modules for 7504R) |
| Line Card Slots | 4 Slots (Line cards not included in base bundle) |
| Power Supplies | 4 × 3kW AC Power Supplies (Titanium-rated efficiency >94%) |
| Cooling | Redundant N+1 hot-swappable fans (side-to-rear airflow) |
| Max System Throughput | Up to 150 Tbps |
| Forwarding Rate | Up to 7.2 Billion packets per second |
| MAC Address Table | Up to 288K MAC addresses |
| IPv4 Routes | Up to 208K (shared across FIB) |
| IPv6 Routes | Up to 64K (shared across FIB) |
| VLANs Supported | Up to 4096 VLANs |
| Advanced Features | VXLAN, EVPN, MLAG, ECMP, QoS, sFlow, ACLs, ZTP |
| Routing Protocols | OSPF, OSPFv3, IS-IS, RIP, BGP, MP-BGP, PIM-SM/SSM, MSDP, BFD |
| Management Ports | 2 × 10/100/1000 Mbps RJ45 Ethernet, 1 × RS-232 Console, 1 × USB |
| Management Features | SNMP v1/v2/v3, Syslog, Telnet, SSH, JSON-RPC, gRPC, REST APIs, CLI |
| Security Features | RADIUS, TACACS+, Control Plane Policing, DHCP Snooping, Port Security |
| Operating System | Arista EOS (Extensible Operating System) |
| Dimensions (H × W × D) | 12.3 in × 19 in × 31.3 in (31.2 cm × 48.3 cm × 79.5 cm) |
| Weight | Approx. 76.5 lbs (34.7 kg) |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Storage Temperature | -13°F to 158°F (-25°C to 70°C) |
| Humidity | 5% to 95% (non-condensing) |
| Altitude | Up to 10,000 ft (3,000 m) |
| Certifications | UL, CE, FCC Class A, RoHS |
| condition | new |
|---|
