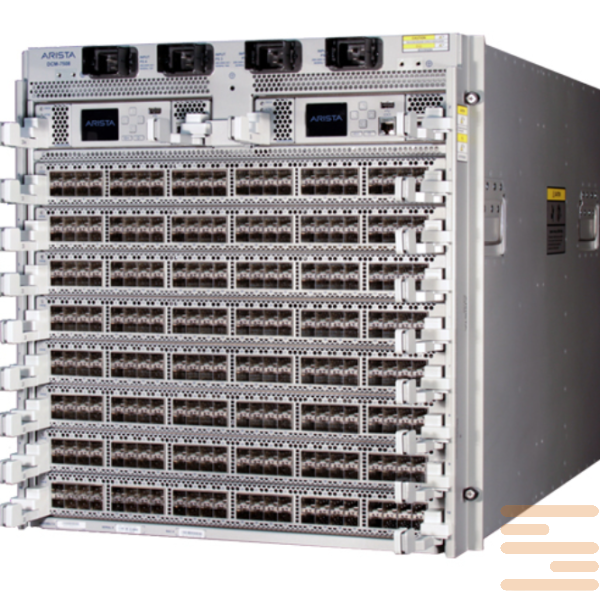

Switch Arista DCS-7508R3-BND-D
252995 $
Arista 7508R Chassis bundle. Includes 7508N chassis, 6x3kW PS, 6xFM-R3, 1xSup2-SSD
Arista 7500R Series – This is the standard of modular new generation switches created specifically for tasks where scalability, productivity and resistance to failures are critically important. This equipment is chosen by both large date centers and cloud services providers that need a basis for working with high loads, complex routing and large amounts of data.
What makes Arista 7500R a unique series? First of all - her architecture. Switches of this line offer a completely modular chassis that allows flexibly configuring the system for specific tasks. You can choose models on 4, 8 or 12 slots that gives freedom of zoom without downtime. All components including power supplies and fans are replaced without power disconnection - a real “hot substitution support".
Technically Arista 7500R Series based on a programmed chip Arista EOS (Extensible Operating System) - operating system that provides high reliability, automation and analytics at the entire network level. Support for up to 460 Tbps of total bandwidth, up to 576 100G ports, multicast optimization, VXLAN, MPLS, the routing segment - all this makes the switches ideal for both traditional and virtualized environments.
Series 7500R focused not only on engineers. Easy to install, re >Auded Settings Logic and Support API allow you to quickly integrate equipment even under limited IT teams. Simply put, if you need a reliable foundation for digital business – Arista 7500R will become the heart of your network.
Specifications of the switch Arista DCS-7508R3-BND-D:
| Attribute | Specification |
|---|---|
| Model | Arista DCS-7508R3-BND-D |
| Chassis Type | 7508N Modular Chassis (13RU) |
| Line Card Slots | 8 |
| Fabric Module Slots | 6 |
| Supervisor Module | 1 x Sup2-D |
| Power Supplies | 6 x 3kW DC |
| Power Supply Redundancy | N+1 or N+N |
| Fan Modules | 6 x FM-R |
| Airflow Direction | Front-to-Rear |
| Dimensions (H x W x D) | 22.75" x 19" x 31.3" (57.8 cm x 48.3 cm x 79.5 cm) |
| Weight (Fully Loaded) | Approximately 400 lbs (182 kg) |
| System Throughput | Up to 230 Tbps |
| Forwarding Rate | Up to 48 Billion packets per second |
| Per Slot Bandwidth | Up to 19.2 Tbps |
| Latency | Under 4 µs (64-byte packets) |
| Max 10GbE Ports | 1,152 |
| Max 25GbE Ports | 1,152 |
| Max 40GbE Ports | 288 |
| Max 50GbE Ports | 576 |
| Max 100GbE Ports | 288 |
| Max 400GbE Ports | 288 |
| Buffer per Line Card | Up to 16 GB |
| Virtual Output Queues (VOQ) | 13,824 per port |
| Layer Support | Layer 2 and Layer 3 |
| Routing Protocols | OSPF, BGP, IS-IS, Segment Routing, EVPN, VXLAN |
| IPv4/IPv6 Route Scale | Up to 2.5 million routes with FlexRoute™ |
| ECMP Support | Up to 512-way ECMP |
| Access Control Lists (ACLs) | Up to 100,000 algorithmic rules |
| QoS Features | Advanced Quality of Service with classification, marking, policing |
| Telemetry Support | sFlow, LANZ, Inband Network Telemetry, Streaming telemetry |
| Operating System | Arista EOS (Extensible Operating System) |
| Management Interfaces | CLI, SNMP, REST APIs, OpenConfig |
| Automation Tools | CloudVision®, Zero Touch Provisioning (ZTP), Python, Bash, C++, Go |
| Security Features | Role-Based Access Control (RBAC), MACsec, ACLs |
| Typical Power Consumption | ~50W per 400G port |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Humidity Range | 5% to 95% non-condensing |
| condition | new |
|---|
