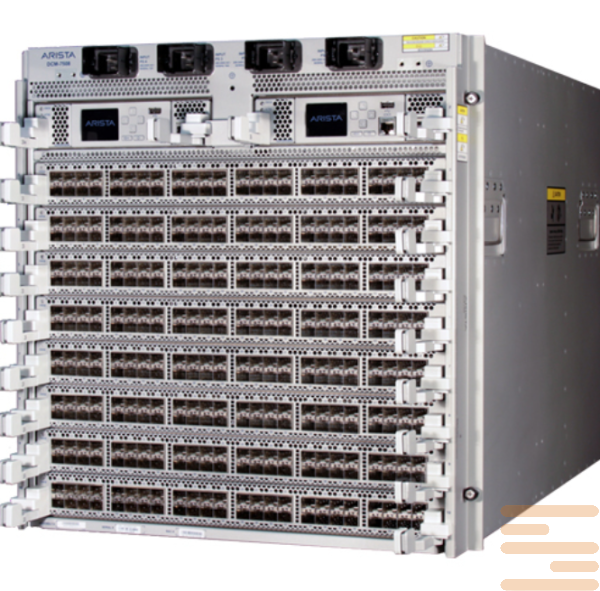

Switch Arista DCS-7512R-BND-DC
329995 $
Arista 7512R Chassis bundle. Includes 7512N chassis, 8xDC PS, 6xFM-R, 1xSup2
Arista 7500R Series – This is the standard of modular new generation switches created specifically for tasks where scalability, productivity and resistance to failures are critically important. This equipment is chosen by both large date centers and cloud services providers that need a basis for working with high loads, complex routing and large amounts of data.
What makes Arista 7500R a unique series? First of all - her architecture. Switches of this line offer a completely modular chassis that allows flexibly configuring the system for specific tasks. You can choose models on 4, 8 or 12 slots that gives freedom of zoom without downtime. All components including power supplies and fans are replaced without power disconnection - a real “hot substitution support".
Technically Arista 7500R Series based on a programmed chip Arista EOS (Extensible Operating System) - operating system that provides high reliability, automation and analytics at the entire network level. Support for up to 460 Tbps of total bandwidth, up to 576 100G ports, multicast optimization, VXLAN, MPLS, the routing segment - all this makes the switches ideal for both traditional and virtualized environments.
Series 7500R focused not only on engineers. Easy to install, re >Auded Settings Logic and Support API allow you to quickly integrate equipment even under limited IT teams. Simply put, if you need a reliable foundation for digital business – Arista 7500R will become the heart of your network.
Specifications of the switch Arista DCS-7512R-BND-DC:
| Category | Specification |
|---|---|
| Model | DCS-7512R-BND-DC |
| Chassis | Arista 7512N, 21RU rack-mountable |
| Dimensions (H x W x D) | 36.75" x 19" x 33.4" (93.3 cm x 48.3 cm x 84.8 cm) |
| Weight (Empty/Fully Loaded) | 185 lbs (84 kg) / 628 lbs (285 kg) |
| Power Supplies | 8 x 3kW DC (N+N redundancy) |
| Fan Modules | 6 x FM-R (Front-to-Rear airflow) |
| Supervisor Modules | 1 x Supervisor 2 (Sup2) |
| Line Card Slots | 12 |
| Fabric Module Slots | 6 |
| Maximum Throughput | Up to 115 Tbps |
| Packet Processing | Up to 51 billion packets per second (Bpps) |
| Port Densities | |
| Latency | Under 4 microseconds for 64-byte packets |
| Buffer per Line Card | 24 GB |
| Virtual Output Queues | 13,824 per port |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Relative Humidity | 5% to 95% non-condensing |
| Operating System | Arista EOS (Extensible Operating System) |
| Advanced Features | |
| Compliance & Certifications | RoHS, NEBS Level 3, UL, CE, FCC, CCC, VCCI |
| condition | new |
|---|
