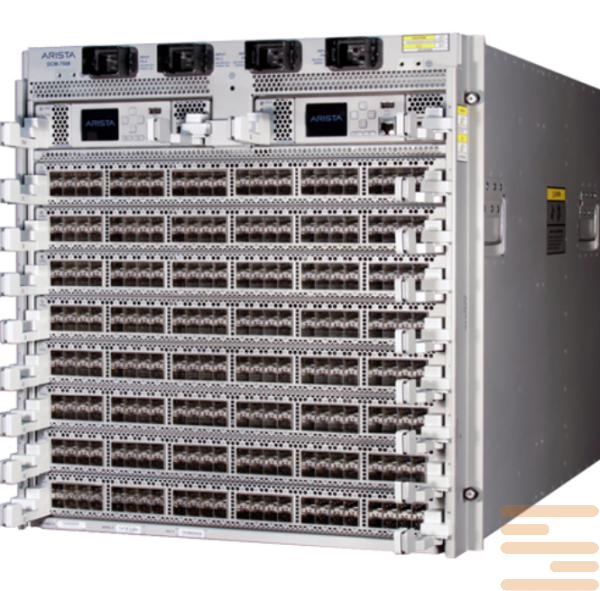

Switch Arista DCS-7516N-CH
59995 $
Arista 7516N empty chassis, 2 Supervisor slots, 8 line card slots, 6 Fabric Module slots, AC or DC option
Arista 7500R Series – This is the standard of modular new generation switches created specifically for tasks where scalability, productivity and resistance to failures are critically important. This equipment is chosen by both large date centers and cloud services providers that need a basis for working with high loads, complex routing and large amounts of data.
What makes Arista 7500R a unique series? First of all - her architecture. Switches of this line offer a completely modular chassis that allows flexibly configuring the system for specific tasks. You can choose models on 4, 8 or 12 slots that gives freedom of zoom without downtime. All components including power supplies and fans are replaced without power disconnection - a real “hot substitution support".
Technically Arista 7500R Series based on a programmed chip Arista EOS (Extensible Operating System) - operating system that provides high reliability, automation and analytics at the entire network level. Support for up to 460 Tbps of total bandwidth, up to 576 100G ports, multicast optimization, VXLAN, MPLS, the routing segment - all this makes the switches ideal for both traditional and virtualized environments.
Series 7500R focused not only on engineers. Easy to install, re >Auded Settings Logic and Support API allow you to quickly integrate equipment even under limited IT teams. Simply put, if you need a reliable foundation for digital business – Arista 7500R will become the heart of your network.
Specifications of the switch Arista DCS-7516N-CH:
| Category | Specification |
|---|---|
| Model | DCS-7516N-CH |
| Chassis Type | 7516N empty chassis |
| Supervisor Slots | 2 |
| Line Card Slots | 8 |
| Fabric Module Slots | 6 |
| Power Input Options | AC or DC |
| Dimensions (H x W x D) | 50.75" x 19" x 37.1" (128.9 cm x 48.3 cm x 94.1 cm) |
| Weight (Empty/Fully Loaded) | 295 lbs (134 kg) / 1025 lbs (465 kg) |
| Switching Capacity | 150 Tbps fabric throughput |
| Packet Forwarding Rate | Up to 69 billion packets per second (Bpps) |
| Per Slot Capacity | Up to 9.6 Tbps |
| Maximum 100GbE Ports | Up to 576 ports at full line-rate |
| Maximum 25GbE Ports | Up to 2,304 ports |
| Maximum 50GbE Ports | Up to 1,152 ports |
| Maximum 40GbE Ports | Up to 576 ports |
| Power System Redundancy | N+N Grid redundant power system |
| Supervisor Redundancy | 1+1 Supervisor redundancy |
| Fabric Module Redundancy | N+1 Fabric module redundancy |
| Fan Module Redundancy | N+1 Fan module redundancy |
| Airflow Design | Front-to-rear airflow |
| Typical Power Consumption | 25W per 100GbE port |
| Operating System | Arista EOS (Extensible Operating System) |
| Advanced Features | |
| Compliance & Certifications | RoHS, NEBS Level 3, UL, CE, FCC, CCC, VCCI |
| condition | new |
|---|
