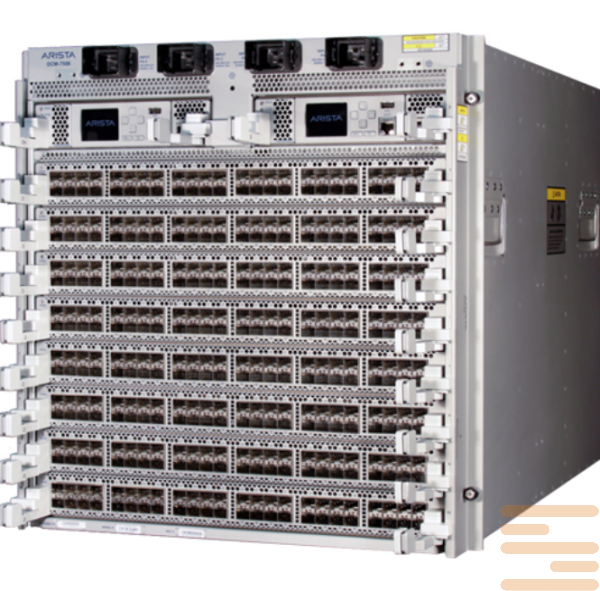

Switch Arista DCS-7516R-BND-DC
432995 $
Arista 7516R DC Chassis bundle. Includes 7516N chassis, 12xDC PS, 6xFM-R, 1x7516-Sup2
Arista 7500R Series – This is the standard of modular new generation switches created specifically for tasks where scalability, productivity and resistance to failures are critically important. This equipment is chosen by both large date centers and cloud services providers that need a basis for working with high loads, complex routing and large amounts of data.
What makes Arista 7500R a unique series? First of all - her architecture. Switches of this line offer a completely modular chassis that allows flexibly configuring the system for specific tasks. You can choose models on 4, 8 or 12 slots that gives freedom of zoom without downtime. All components including power supplies and fans are replaced without power disconnection - a real “hot substitution support".
Technically Arista 7500R Series based on a programmed chip Arista EOS (Extensible Operating System) - operating system that provides high reliability, automation and analytics at the entire network level. Support for up to 460 Tbps of total bandwidth, up to 576 100G ports, multicast optimization, VXLAN, MPLS, the routing segment - all this makes the switches ideal for both traditional and virtualized environments.
Series 7500R focused not only on engineers. Easy to install, re >Auded Settings Logic and Support API allow you to quickly integrate equipment even under limited IT teams. Simply put, if you need a reliable foundation for digital business – Arista 7500R will become the heart of your network.
Specifications of the switch Arista DCS-7516R-BND-DC:
| Category | Specification |
|---|---|
| Chassis Model | Arista 7516N |
| Rack Units | 29RU |
| Dimensions (H x W x D) | 50.75" x 19" x 37.1" (128.9 cm x 48.3 cm x 94.1 cm) |
| Weight (Fully Loaded) | Approximately 1,025 lbs (465 kg) |
| Power Supplies | 12 x DC power supplies |
| Fan Modules | 6 x FM-R (Front-to-Rear airflow) |
| Supervisor Modules | 1 x 7516-Sup2 |
| Line Card Slots | 16 |
| Fabric Module Slots | 6 |
| Maximum Throughput | Up to 150 Tbps |
| Packet Processing | Up to 69 billion packets per second (Bpps) |
| Port Densities | |
| Latency | Under 4 microseconds for 64-byte packets |
| Buffer per Line Card | 24 GB |
| Virtual Output Queues | 18,432 per port |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Relative Humidity | 5% to 95% non-condensing |
| Operating System | Arista EOS (Extensible Operating System) |
| Advanced Features | |
| Compliance & Certifications | RoHS, NEBS Level 3, UL, CE, FCC, CCC, VCCI |
| condition | new |
|---|
