JL001A Specification
|
|
Type
|

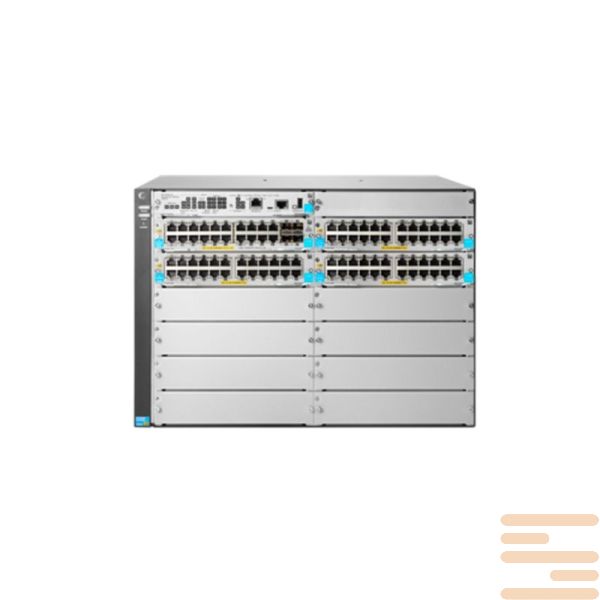

HPE 5412R 92GT PoE+/4SFP+ (No PSU) v3 zl2 Switch
|
|
Included accessories
|
1 HPE 5400R zl2 Management Module (J9827A)
1 HPE 5412R zl2 Switch Fan Tray (J9832A)
3 HPE 24-port 10/100/1000BASE-T PoE+ MACsec v3 zl2 Module (J9986A)
1 HPE 20-port 10/100/1000BASE-T PoE+/ 4-port 1G/10GbE SFP+ MACsec v3 zl2 Module (J9990A)
|
|
I/O ports and slots
|
92 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX,
IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); Media Type: Auto-MDIX; Duplex: 10BASET/100BASE-TX:
half or full; 1000BASE-T: full only
4 open 10GbE SFP+ transceiver slots
8 open module slots
Supports a maximum of 288 autosensing 10/100/1000 ports or 288 SFP ports or 96 SFP+ ports or 96 HPE Smart
Rate Multi-Gigabit or 24 40GbE ports, or a combination
|
|
Power supplies
|
4 power supply slots
2 minimum power supplies required (ordered separately)
|
|
Fan Tray
|
Includes: 1 x J9832A
1 fan tray slot
|
|
Dimensions (W x D x H)
|
17.5(w) x 17.75(d) x 12.1(h) in. (44.45 x 45.09 x 30.73 cm) (7U height)
|
|
Weight
|
45.19 lb (20.5 kg)
|
|
Memory and processor
|
|
v3 Gigabit Module
|
Dual ARM® Coretex A9 @ 1 GHz; Packet buffer size: 13.5 MB internal
|
|
v2 Gigabit Module
|
ARM 11 @ 450 MHz; Packet buffer size: 18 MB internal
|
|
v3 10G Module
|
Dual ARM Coretex A9 @ 1 GHz; Packet buffer size: 13.5 MB internal
|
|
v2 10G Module
|
ARM 11 @ 550 MHz; Packet buffer size: 18 MB internal
|
|
v3 40G Module
|
Dual ARM Coretex A9 @ 1 GHz; Packet buffer size: 13.5 MB internal
|
|
Management Module
|
Freescale P2020 dual core @ 1.2 GHz, 16 MB flash, 1 GB SD Card, 4 GB DDR3 SODIMM
|
|
Mounting and enclosure
|
Mounts in an EIA standard 19-inch telco rack or equipment cabinet (hardware included); Horizontal surface mounting only
|
|
Performance (IPv6 Ready Certified)
|
|
1000 Mb Latency
|
< 2.8 µs (FIFO 64-byte packets)
|
|
10 Gbps Latency
|
< 1.8 µs (FIFO 64-byte packets)
|
|
40 Gbps Latency
|
< 1.5 µs (FIFO 64-byte packets)
|
|
Throughput
|
up to 1142.8 Mpps
|
|
Routing/Switching capacity
|
1920 Gbps
|
|
Switch fabric speed
|
2030 Gbps
|
|
Routing table size
|
10000 entries (IPv4), 5000 entries (IPv6)
|
|
MAC address table size
|
64000 entries
|
|
Environment
|
|
Operating temperature
|
32°F to 113°F (0°C to 45°C); 0°C to 40°C with J8177C transceiver installed, 0°C to 35°C with FIPS Opacity Shield installed
|
|
Operating relative humidity
|
15% to 95% @ 113°F (45°C), noncondensing
|
|
Nonoperating/Storage temperature
|
-40°F to 158°F (-40°C to 70°C)
|
|
Nonoperating/Storage relative humidity
|
15% to 95% @ 149°F (65°C), noncondensing
|
|
Altitude
|
Up to 10,000 ft (3 km)
|
|
Acoustic
|
Power: 49 dB, Pressure: 35.7 dB ISO 7779, ISO 9296
|
|
Electrical characteristics
|
|
Frequency
|
50/60 Hz
|
|
80plus.org Certification
|
Gold
|
|
Description
|
Does not come with power supply. Two power supply slots are available; three different power supplies are available.
See power supply products for additional specifications.
|
|
Maximum heat dissipation
|
4900 BTU/hr (5169.5 kJ/hr), (max. non-PoE);
7400 BTU/hr (7807 kJ/hr), (max. using PoE)
|
|
Voltage
|
110–127/200–240 VAC, rated (depending on power supply chosen)
|
|
Idle power
|
312 W
|
|
Notes
|
Heat dissipation does not include heat dissipated by the PoE-powered devices themselves. When more than four
power cords are installed in a 5412R zl2 switch chassis, additional installation requirements are needed.
|
|
Safety
|
CSA 22.2 No. 60950; UL 60950; IEC 60950; EN 60950
|
|
Emissions
|
FCC part 15 Class A; EN 55022/CISPR 22 Class A
|
|
Immunity
EN
ESD
Radiated
EFT/Burst
Surge
Conducted
Power frequency magnetic field
Harmonics
Flicker
|
EN 55024, CISPR 24
IEC 61000-4-2; 4 kV CD, 8 kV AD;
HPE ENV. 765.002
IEC 61000-4-3; 3 V/m
IEC 61000-4-4; 1.0 kV (power line), 0.5 kV (signal line) IEC 61000-4-5; 1 kV/2 kV AC, 1 kV signal, 0.5 kV DC
IEC 61000-4-6; 3 Vrms
IEC 61000-4-8; 1 A/m, 50 or 60 Hz
IEC 61000-4-11; >95% reduction, 0.5 period; 30% reduction, 25 periods
EN 61000-3-2, IEC 61000-3-2
EN 61000-3-3, IEC 61000-3-3
|
|
Management
|
IMC—Intelligent Management Center; Command-line interface; Web browser; Configuration menu; Out-of-band
management (RJ-45 Ethernet); SNMP Manager; Out-of-band management (serial RS-232C or micro USB)
AirWave Network Management
|
|
Notes
|
Supported 1G SFP transceivers are revision “B” or later (product number ends with the letter “B” or later;
For example, J9142B, J8177C).
|
