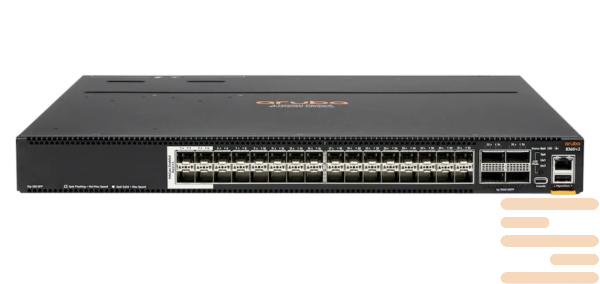

Switch Aruba (HPE) JL700C

Datasheet Aruba JL700C

Specifications

External I/O Ports

- 28 ports of 1GbE/10GbE/25GbE (SFP/SFP+/SFP28) 4 ports of 10GbE/25GbE (SFP+/SFP28) with MACsec

- 4 ports of 40GbE/100GbE QSFP+/QSFP28) (optional 1GBASE-T SFP, 10GBASE-T SFP+ transceivers and 4x10G/25G breakout cables supported)

Memory and Processor

CPU: 1.8 GHz 4-core 64-bit; RAM: 16 GB; Flash/Storage: 32 GB; Packet Buffer: 32 MB

Management Features

RJ-45 serial and USB-C console; RJ-45 Ethernet port; USB-Type A

Power Supply Name

2 field-replaceable and hot-swappable power supplies depends on the model

Performance

Switching Capacity

2.4 Tbps

Switch Fabric Speed

2.4 Tbps

Throughput

2,678 Mpps

Feature

Routing Capabilities

Static (IPv4/IPv6): RIPv2; RIPng; OSPF; OSPFv3; BGP-4; MP-BGP with IPv6; PBR; ECMP; GRE, MPLS

Power

Power Consumption Description

425W (Max Power) 120W (Idle Power)

PoE Capability

275 W PoE+

Heat Dissipation

1,450 BTU/hr

Dimensions

Product Dimensions (imperial)

1.73 x 17.4 x 16.0 in

Product Dimensions (metric)

4.40 x 4.42 x 40.6 cm

Weight (imperial)

18.05 lb

Weight (metric)

8.19 kg
