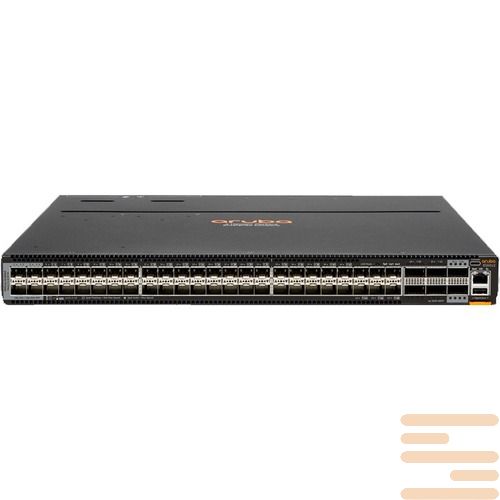

A series of highly intelligent and high-performance switches Aruba CX 8360 can be used for both corporate campus cores and data centers that require server-over-rack connectivity and aggregation of scale-out, rack-to-rack, spine, and leaf topologies.
Switch Specifications Aruba JL705C:
|
Product Name
|
Aruba 8360-48Y6C v2 BF 5F 2AC Bdl.
|
|
Manufacturer Part Number
|
JL705C
|
|
Product Type
|
Ethernet Switch
|
|
Manageable
|
Yes
|
|
Ethernet Technology
|
25 Gigabit Ethernet
100 Gigabit Ethernet
|
|
Number of Total Expansion Slots
|
54
|
|
Product Family
|
CX 8360
|
|
Media Type Supported
|
Optical Fiber
|
|
Redundant Power Supply Supported
|
Yes
|
|
TAA Compliant
|
Yes
|
|
Expansion Slot Type
|
QSFP28
SFP28
|
|
Form Factor
|
Rack-mountable
|
|
Power Consumption
|
725 W
|
|
Power Source
|
Power Supply
|
|
Layer Supported
|
3
|
|
Compatible Rack Unit
|
1U
|
|
Number of Power Supplies Supported
|
2
|
|
Modular
|
Yes
|
|
Uplink Port
|
Yes
|
|
Port / Expansion Slot Details
|
48 x 25 Gigabit Ethernet Expansion Slot
6 x 100 Gigabit Ethernet Expansion Slot
|
|
Networking Standards
|
IEEE 802.1Qbb
IEEE 802.3ad
IEEE 802.1ab
IEEE 802.1Q
IEEE 802.1D
IEEE 802.1w
IEEE 802.1s
IEEE 802.1ae
IEEE 802.1AEbn
IEEE 802.1AEbw
IEEE 802.1ak
IEEE 802.1AX
IEEE 802.1t
IEEE 802.1v
IEEE 802.3ae
IEEE 802.3an
IEEE 802.3ba
IEEE 802.3by
IEEE 802.3cc
IEEE 802.3z
|
|
Height
|
1.7"
|
|
Width
|
17.4"
|
|
Depth
|
22"
|
|
Product Series
|
CX 8360
|
|
Product Model
|
8360v2- 48Y4C
|
|
Network Technology
|
25GBase-X
100GBase-X
|
|
Input Voltage
|
120 V AC
230 V AC
|
|
Frequency
|
50 Hz
60 Hz
|
